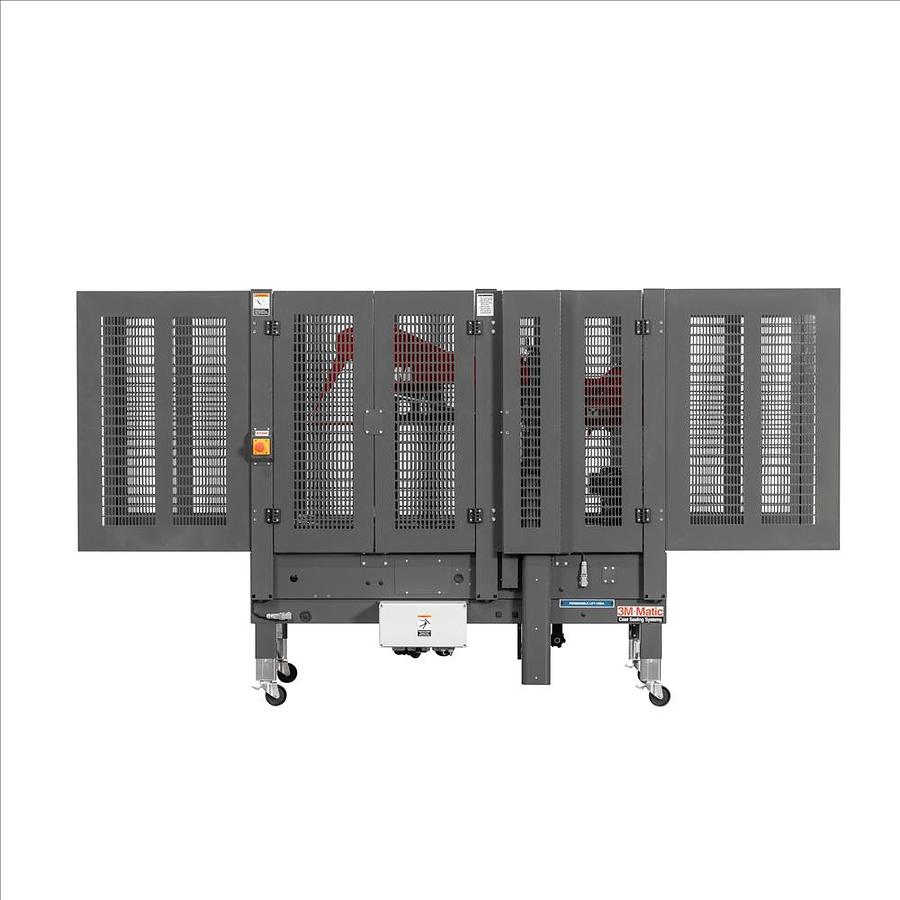

8000AF3 Automatic Case Sealer

The 3M-Matic™ 8000AF3 Automatic Case Sealer is a high-speed, fully automatic carton sealing system designed to fold upper box flaps and apply tape to both the top and bottom of corrugated cases without operator intervention. Equipped with 3M™ AccuGlide™ 3 taping heads, the 8000AF3 delivers consistent, reliable seals at speeds of up to 40 cases per minute, making it ideal for high-volume packaging and distribution operations.

Key Features & Benefits

• Fully Automatic Operation: Automatically folds top flaps and seals both the top and bottom of cases, reducing labor requirements.
• High-Speed Performance: Seals up to 40 cases per minute for efficient production throughput.
• AccuGlide™ 3 Taping Heads: Provide consistent, durable tape application for secure carton closure.
• Integrated Box Indexer: Adjustable pressure and height controls separate incoming cartons for smooth, continuous operation.
• Energy-Saving System: Automatically shuts down when no box is present, reducing unnecessary energy consumption.
• Versatile Case Handling: Manually adjustable for various carton dimensions, with dual-height drive belt positions.
• Heavy-Duty Construction: Welded 16-gauge steel frame engineered for durability.

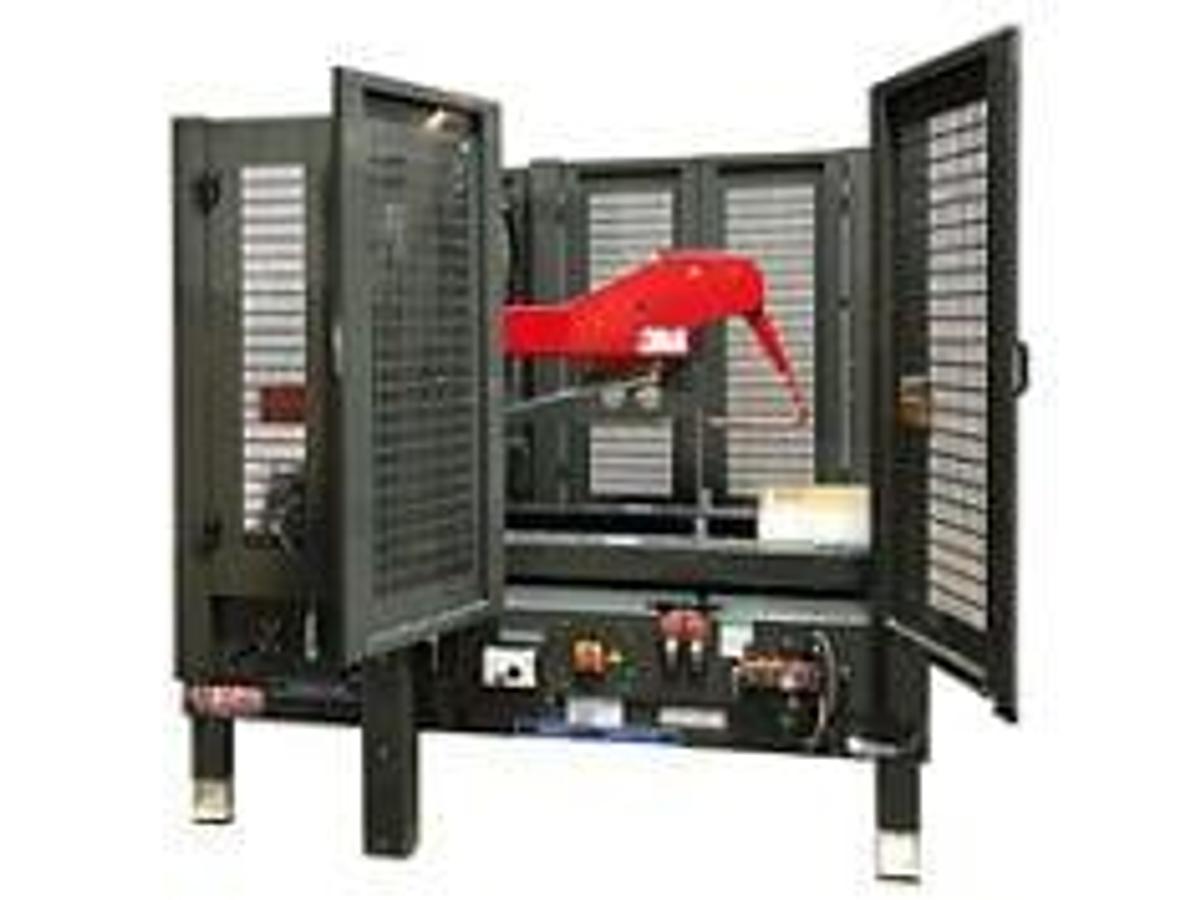

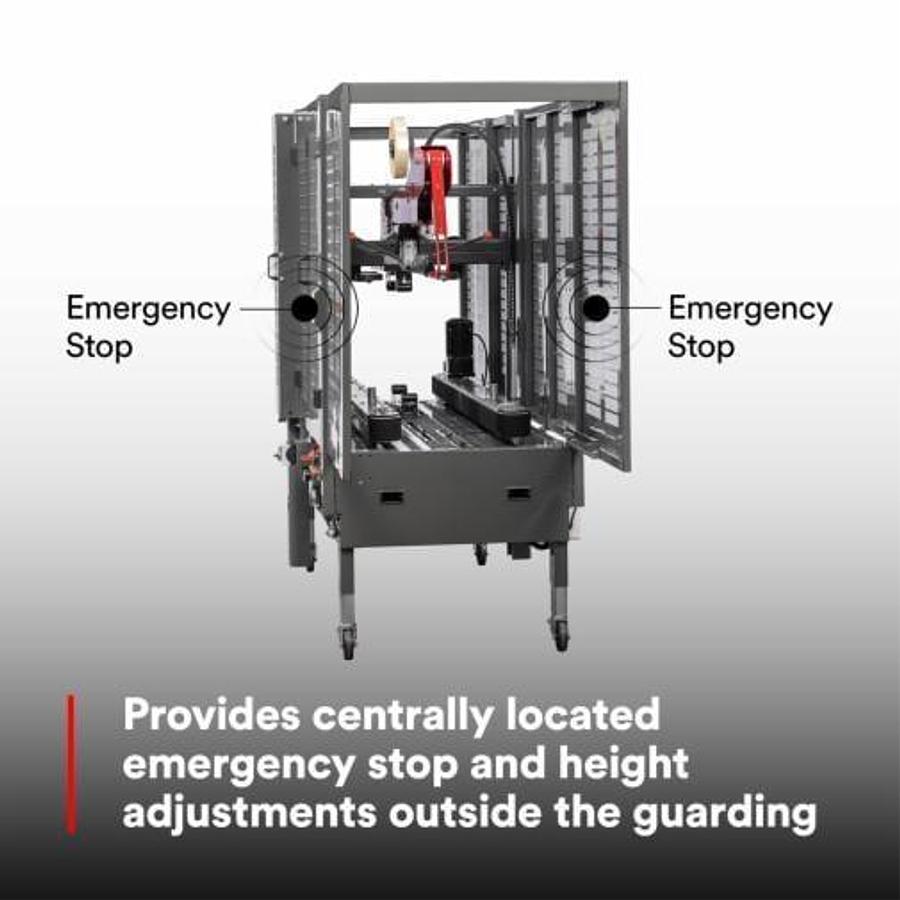

• Operator Safety: Safety-interlocked access doors with steel viewing screens and emergency stops on both sides.
• European-made Quality, NOT made in China

Technical Specifications

Specification8000AF3Operating SpeedUp to 40 cases/minuteSealing ConfigurationAutomatic top and bottomTape Width48–75 mmMinimum Box Size (L × W × H)6" × 5.75" × 3.75"Maximum Box Size (L × W × H)30" × 21.5" × 28.5"Box Weight Capacity5–85 lbsBelt Drive Speed100 ft/minElectrical Requirements115V, 60Hz, 3.8APower Consumption440 wattsAir Requirements2.5 SCFM @ 85 PSIMachine Dimensions (W × L)45.8" × 75.6"Overall Length (L2)106.9"Adjustable Machine Height62"–86"Machine Weight820 lbs (uncrated)

Ideal Applications: High-volume carton sealing, food processing packaging lines, manufacturing facilities, fulfillment centers, and distribution operations requiring consistent, automated case closure.
