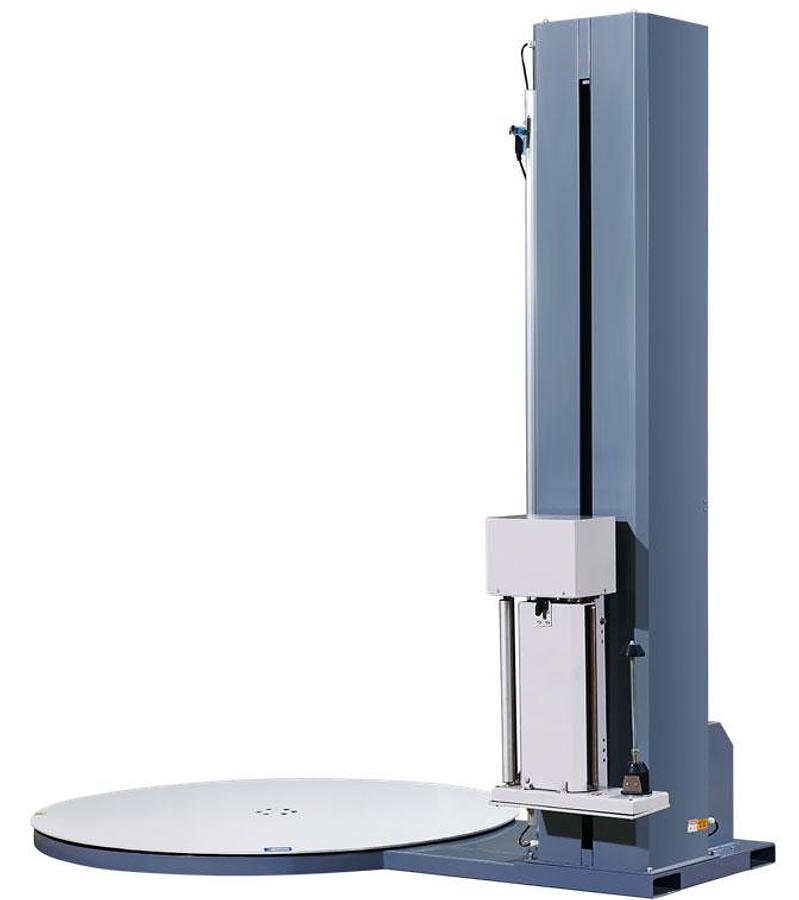

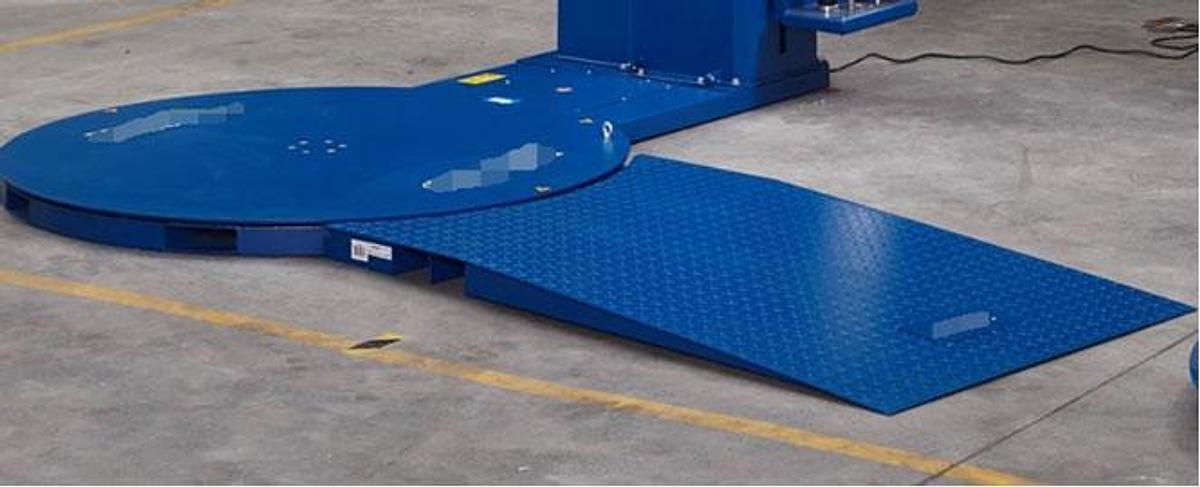

RAM 4505-2 Turntable Pallet Wrapper with Ramp

The 4505-2 Turntable Pallet Wrapper is a heavy-duty semi-automatic stretch wrapping machine designed to improve pallet load stability while reducing stretch film usage. Its powered pre-stretch system provides up to 250% film stretch, while smooth variable-speed operation, photo-eye load sensing, and programmable PLC controls deliver consistent wrapping for warehouses, distribution centers, manufacturing plants, and other high-volume packaging operations. The 4505-2 is rated for 30–40 loads per hour and handles pallet loads up to 48" x 48" x 83". 4505-2 Pallet Wrapper Brochure … 4505-2 Pallet Wrapper Brochure …

Standard Features

• Powered pre-stretch up to 250% to improve film yield and reduce film consumption
• Semi-automatic wrap cycles
• 59" heavy-duty turntable
• Chain-driven turntable rotation system
• Soft start/stop operation for smooth load handling
• Variable-speed turntable operation
• Automatic photo-eye pallet height sensing
• PLC controls with 5 programmable wrap programs
• Variable-speed carriage elevator
• Easy-thread stretch film loading design
• Accepts 20" commercial stretch film with 3" core
• OSHA-compliant safety system
• Forklift-portable design for easier machine relocation
• 110V plug-and-play power
• Heavy-duty industrial construction
• 2-year limited parts warranty 4505-2 Pallet Wrapper Brochure … 4505-2 Pallet Wrapper Brochure …

Specifications

Operation: Semi-Automatic

Production Rate: 30–40 loads/hour

Maximum Load Size: 48" L x 48" W x 83" H

Maximum Load Weight: 3,200–4,400 lbs

Turntable Diameter: 59"

Turntable Drive: 1/2 HP AC variable speed, 0–13 RPM

Carriage Elevator: 1/2 HP belt drive, variable speed

Film Pre-Stretch: Up to 250%

Stretch Film: 20" film, 3" core

Controls: PLC with 5 programs

Load Detection: Automatic photo eye

Power: 115V, 1-phase, 15A

Machine Dimensions: 97" L x 59" W x 90" H

Forklift Portable: Yes

Shipping Weight: Approx. 1,630 lbs

Warranty: 2-year limited parts warranty

The RAM 4505-2 Pallet Wrapper is well suited for stabilizing cartons, cases, bundled products, and palletized industrial loads in production, storage, and distribution environments. Contact RAM Equipment today for pricing, availability, or a quote on the New 4505-2 Semi-Automatic Pallet Wrapper.
