RAM Pallet Stretch Wrapper Machine - Low Profile, Includes Ramp

The 983 Low Profile Pallet Wrapper is a heavy-duty semi-automatic stretch wrapping machine designed for fast, consistent pallet wrapping while reducing stretch film usage. Its low-profile 59-inch turntable and included loading ramp make it easy to load pallets with a pallet jack, while the 250% powered pre-stretch film system increases film yield and helps lower packaging costs. The 983 LP handles loads up to 4,000 lbs and 50" x 50" x 85", with rated throughput of 30–40 loads per hour. 983 Equipment Literature

Standard Features

• Low-profile design with loading ramp included

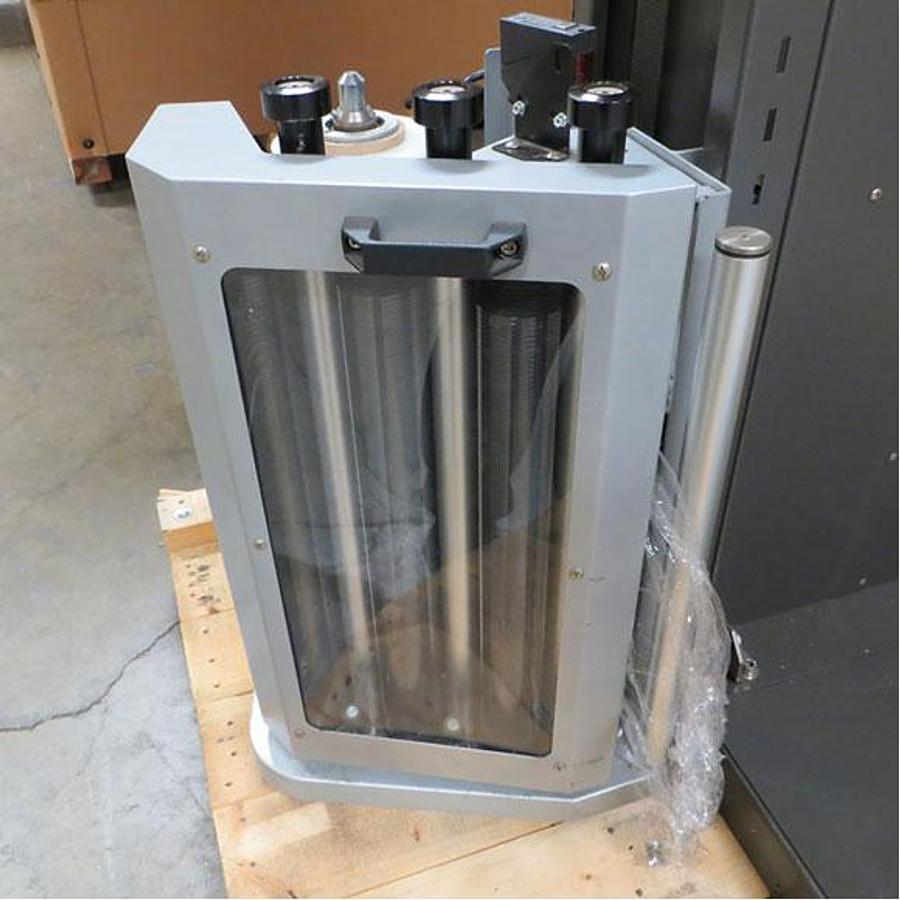

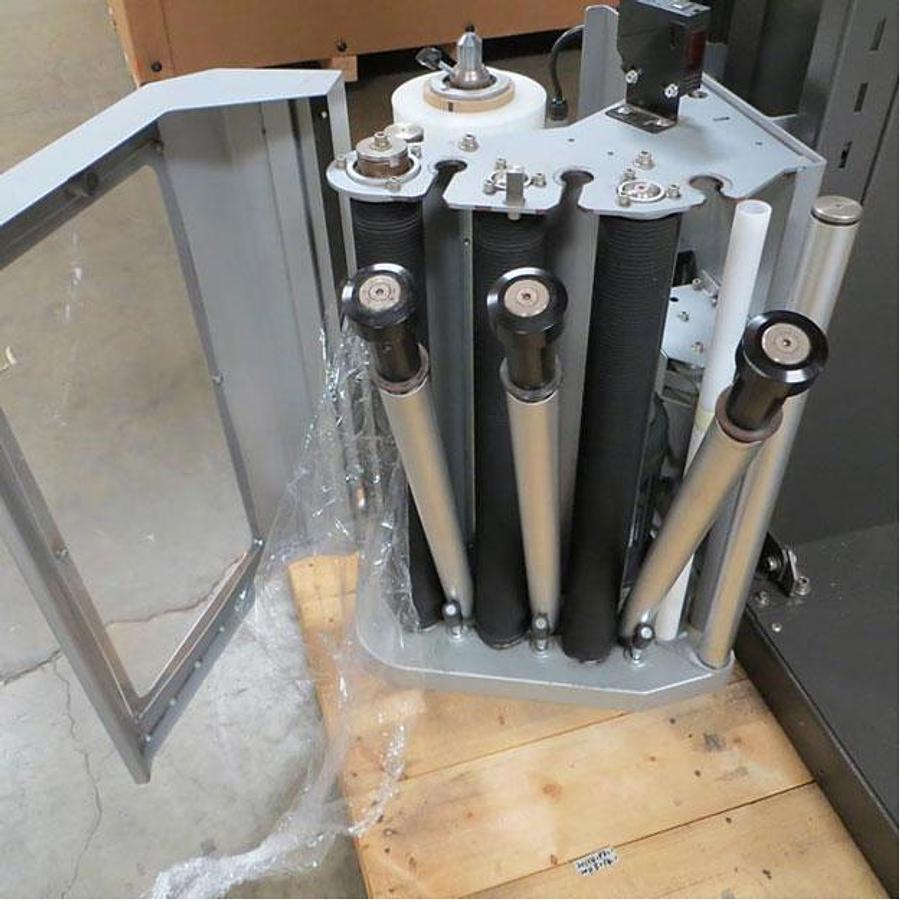

• 250% powered pre-stretch system with triple-roller design for smooth film delivery and reduced film consumption
• Easy-thread film loading system

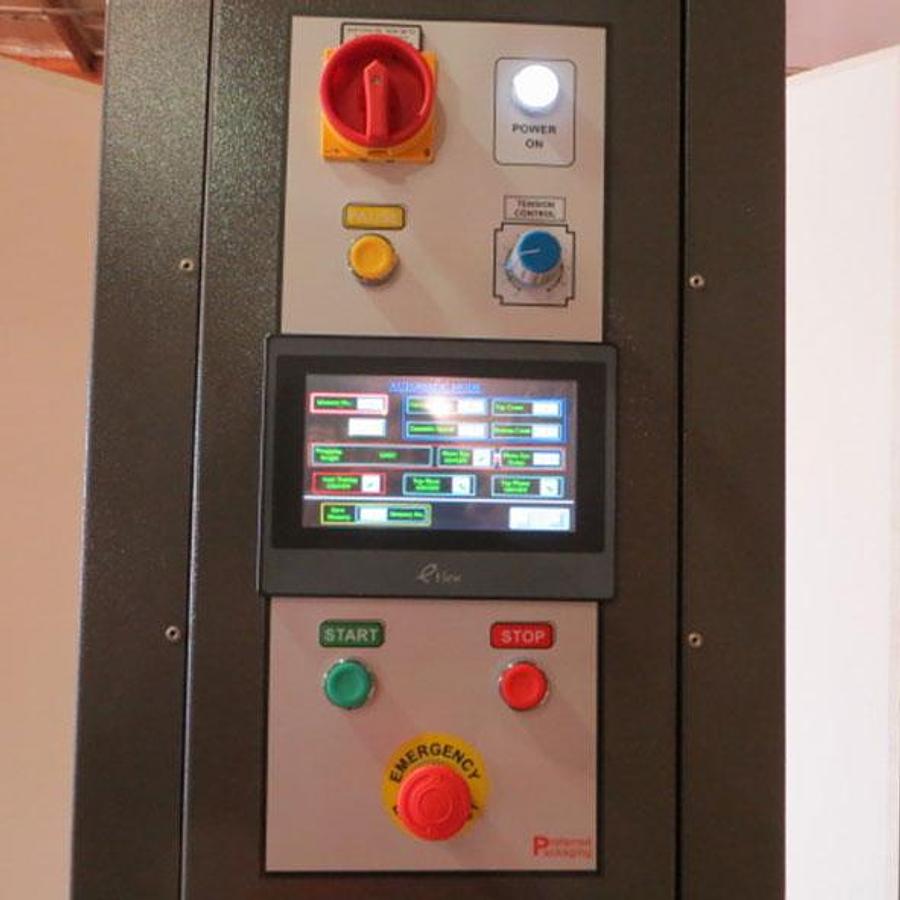

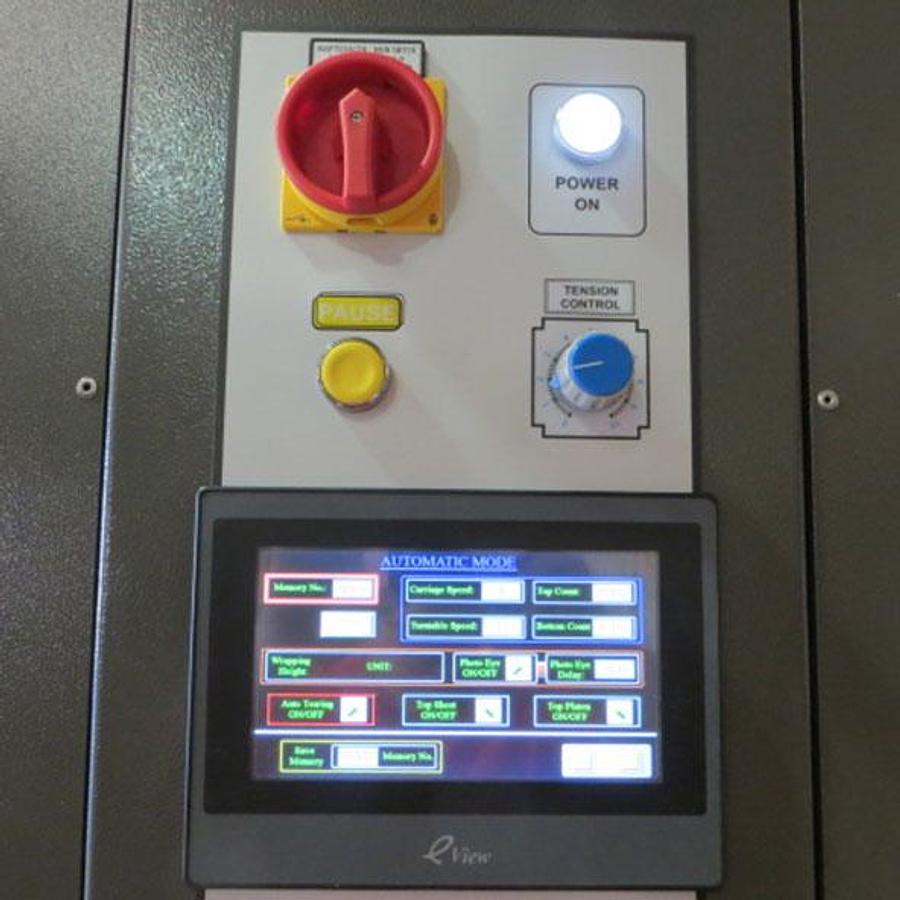

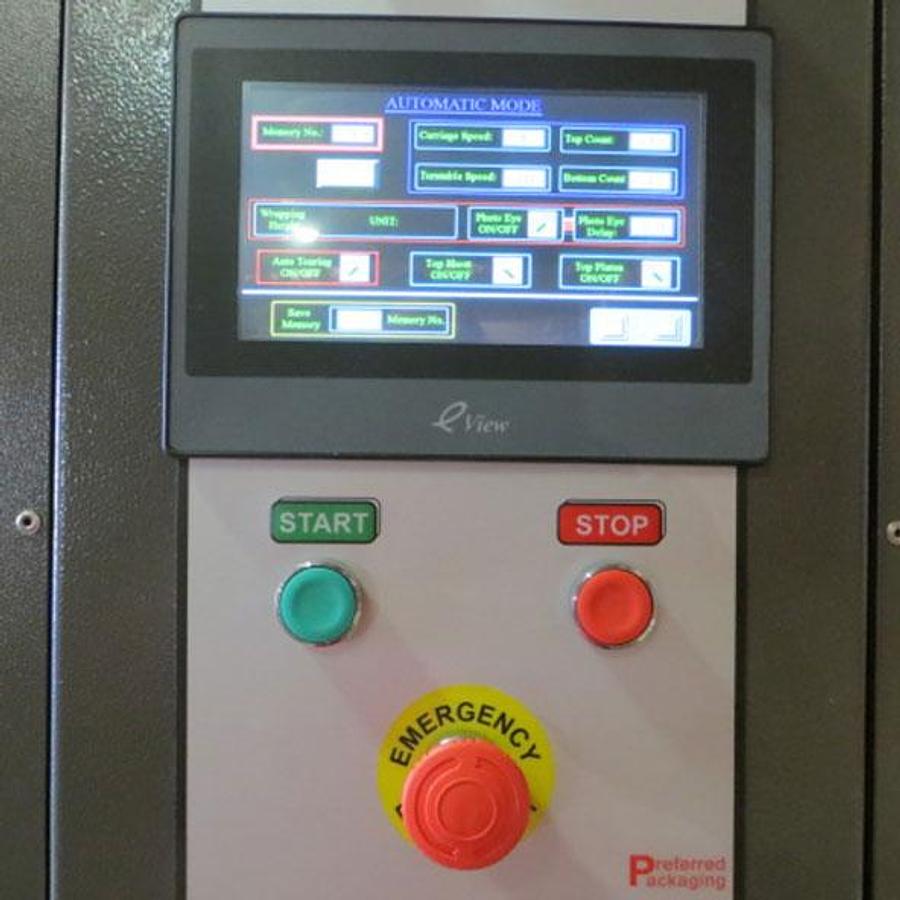

• 7" color touchscreen HMI
• 12 programmable wrap settings for repeatable wrapping programs
• Adjustable top and bottom wrap counts
• Variable film tension, turntable speed and carriage speed
• Manual and automatic operation with start, stop and pause controls
• Variable-speed turntable from 0–15 RPM

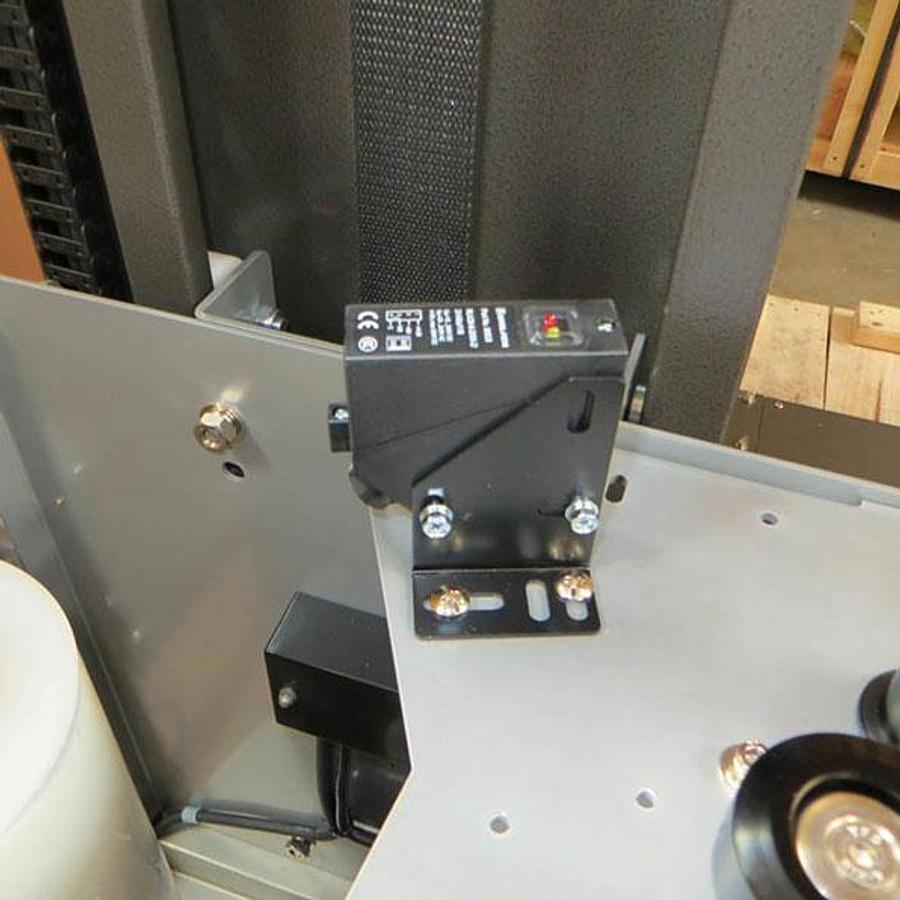

• Automatic photo eye for detecting load height
• “Easy Clip” for quickly attaching stretch film before wrapping

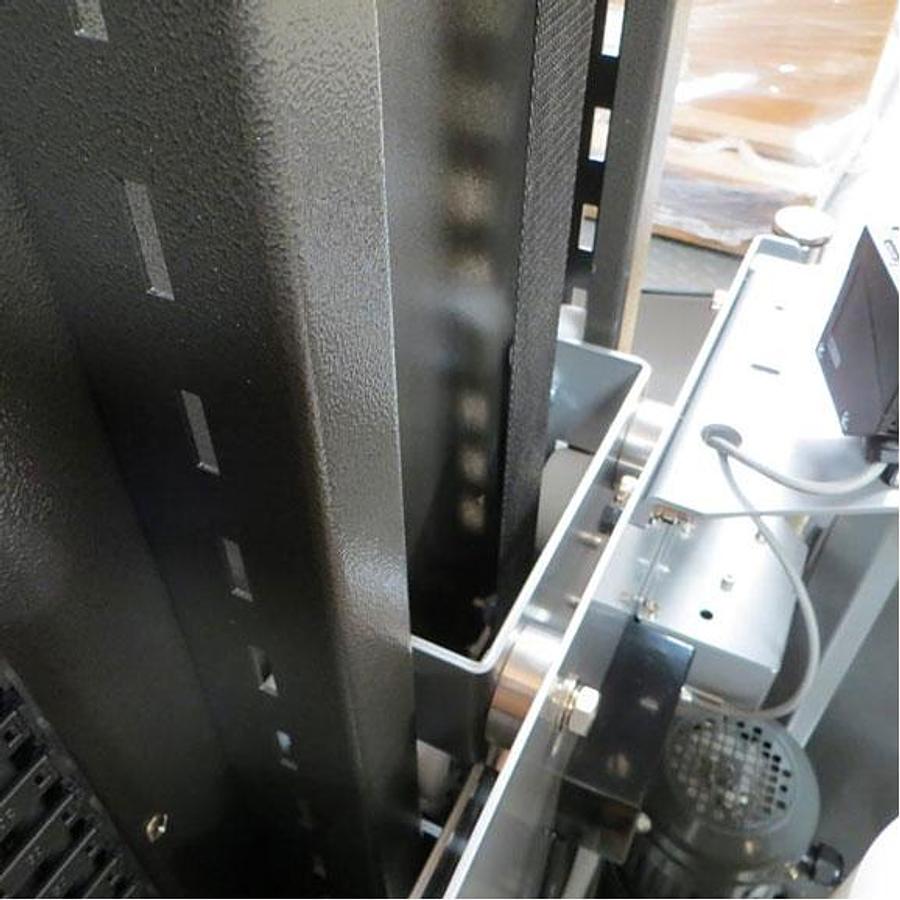

• Belt-driven film carriage for reduced maintenance
• Safety door and Lexan pre-stretch cover to protect operators from moving rollers and pinch points
• Emergency stop switch
• Carriage safety latch prevents the carriage from falling in the event of belt failure

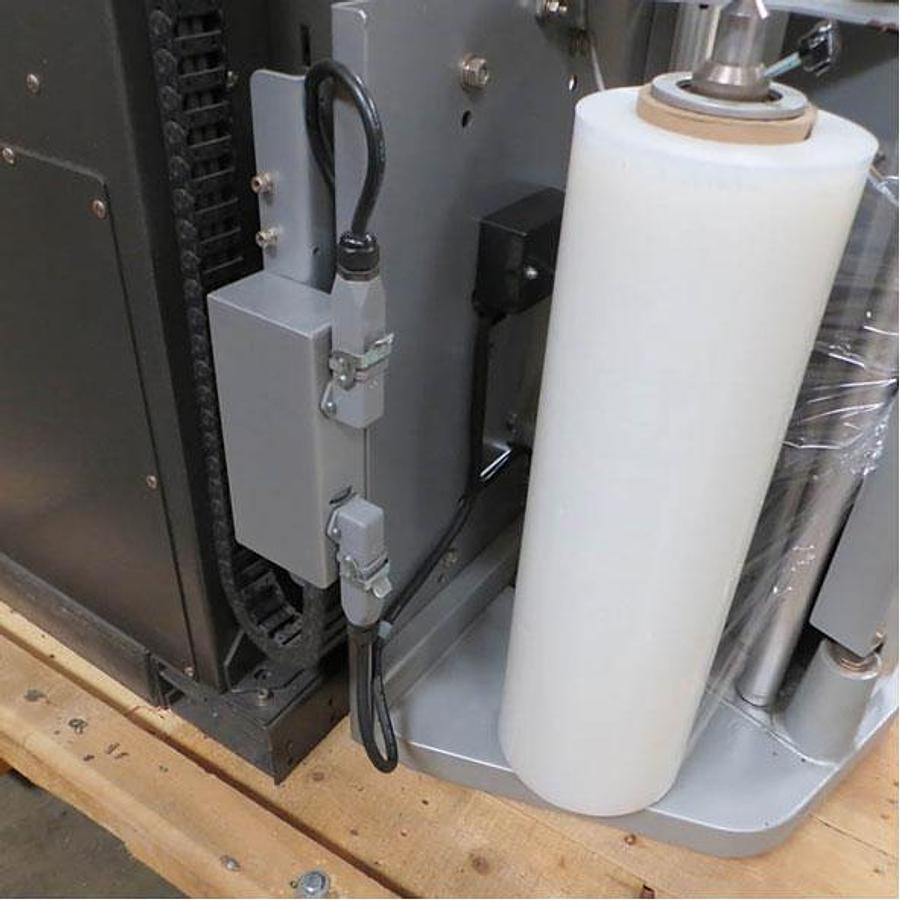

• Quick-connect/disconnect power supply for the pre-stretch carriage

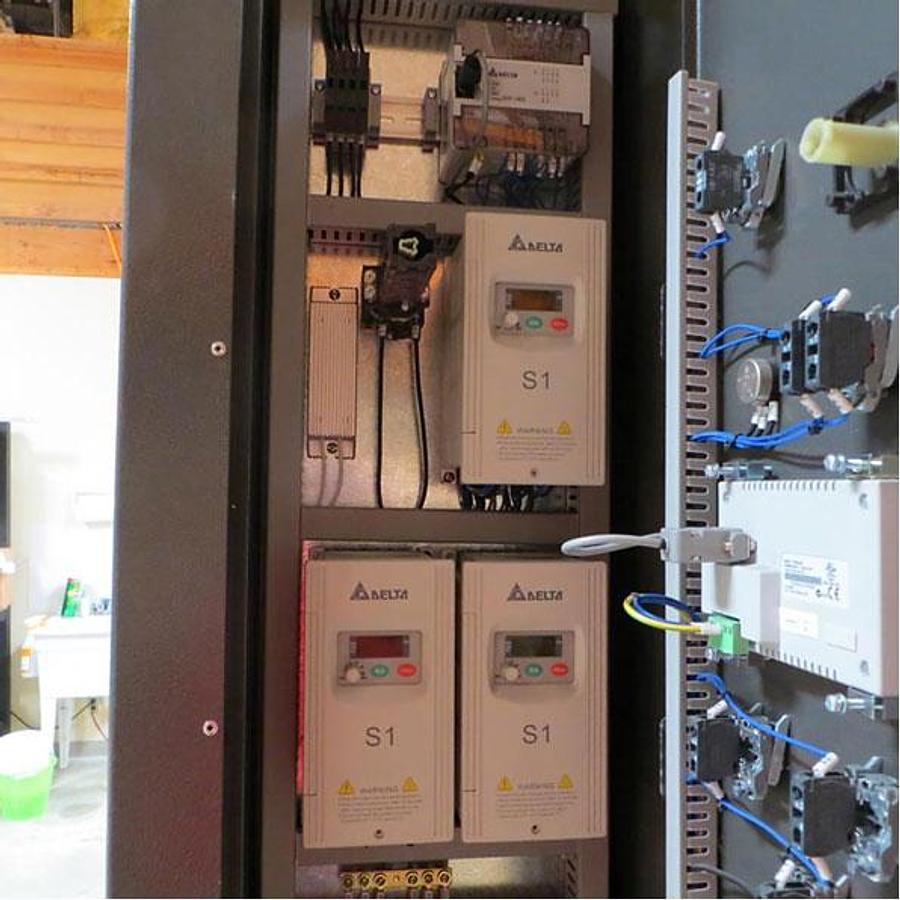

• AC variable-frequency motor controls for smooth acceleration and deceleration, helping maintain unstable load integrity
• Home-position control automatically returns the turntable to its starting position
• Forklift portable for easier relocation
• Heavy-duty 1 HP turntable drive motor and #50 drive chain QUOTE 983HP (2) QUOTE 983HP (2) QUOTE 983HP (2)

Specifications - 983 Low Profile

Operation: Semi-Automatic

Maximum Load Capacity: 4,000 lbs

Maximum Load Size: 50" x 50" x 85"

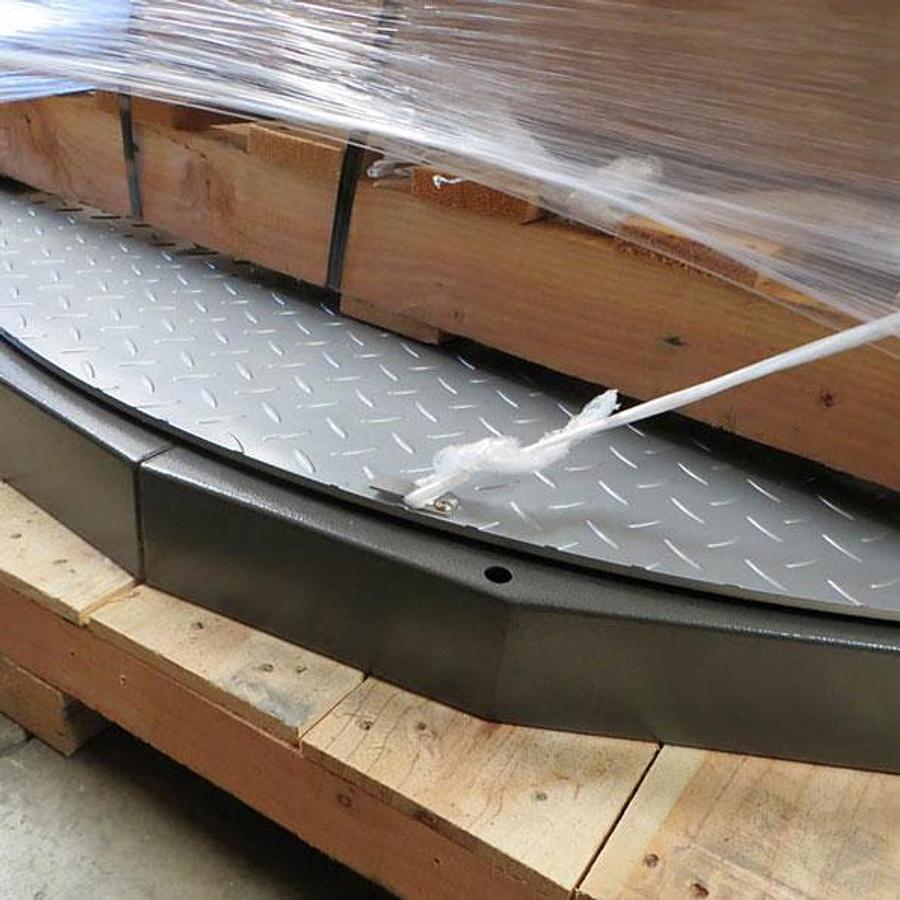

Turntable: 59" diamond plate, low profile

Turntable Speed: 0–15 RPM, variable

Throughput: 30–40 loads/hour

Film System: 250% powered pre-stretch

Film Size: 20" commercial stretch film

Controls: Digital PLC / touchscreen HMI

Program Memory: 12 programmable settings

Load Detection: Automatic photo eye

Power115V, 1-phase, 15A

Machine Weight: 1,450 lbs

Warranty: 3-year limited warranty

The 983 Low Profile Pallet Wrapper is an ideal stretch wrapping solution for warehouses, distribution centers, food processors and manufacturing facilities looking to improve pallet load containment, reduce film costs and increase packaging efficiency. Contact RAM Equipment today for pricing, availability or a quote on the New 983 Low Profile Pallet Wrapper.
