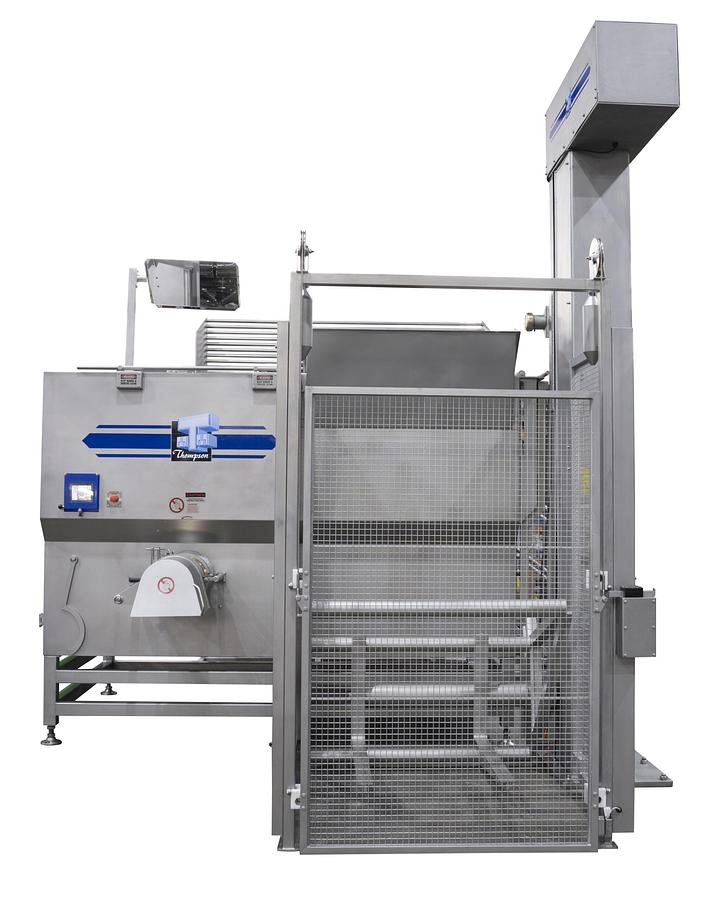

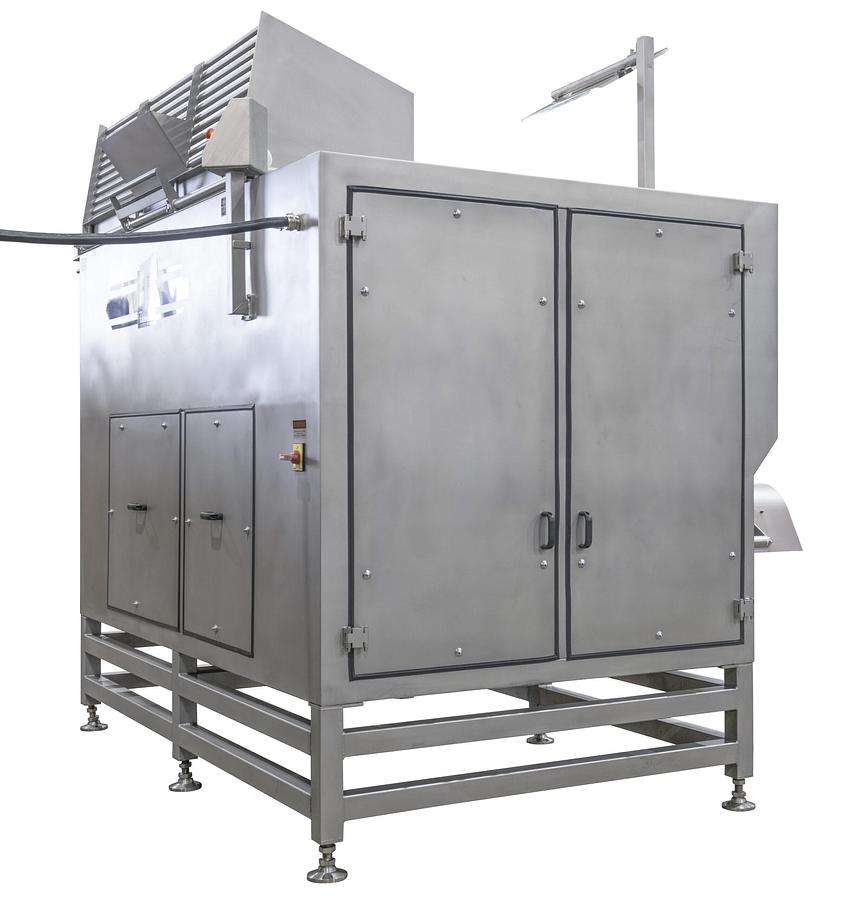

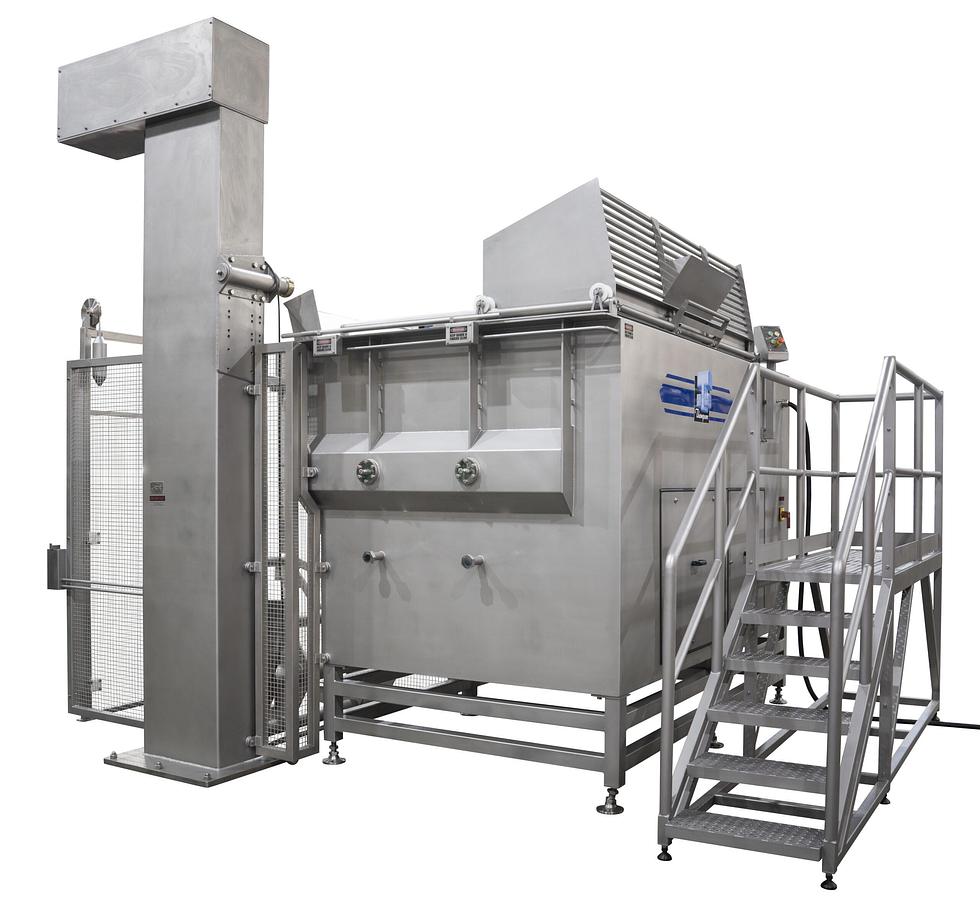

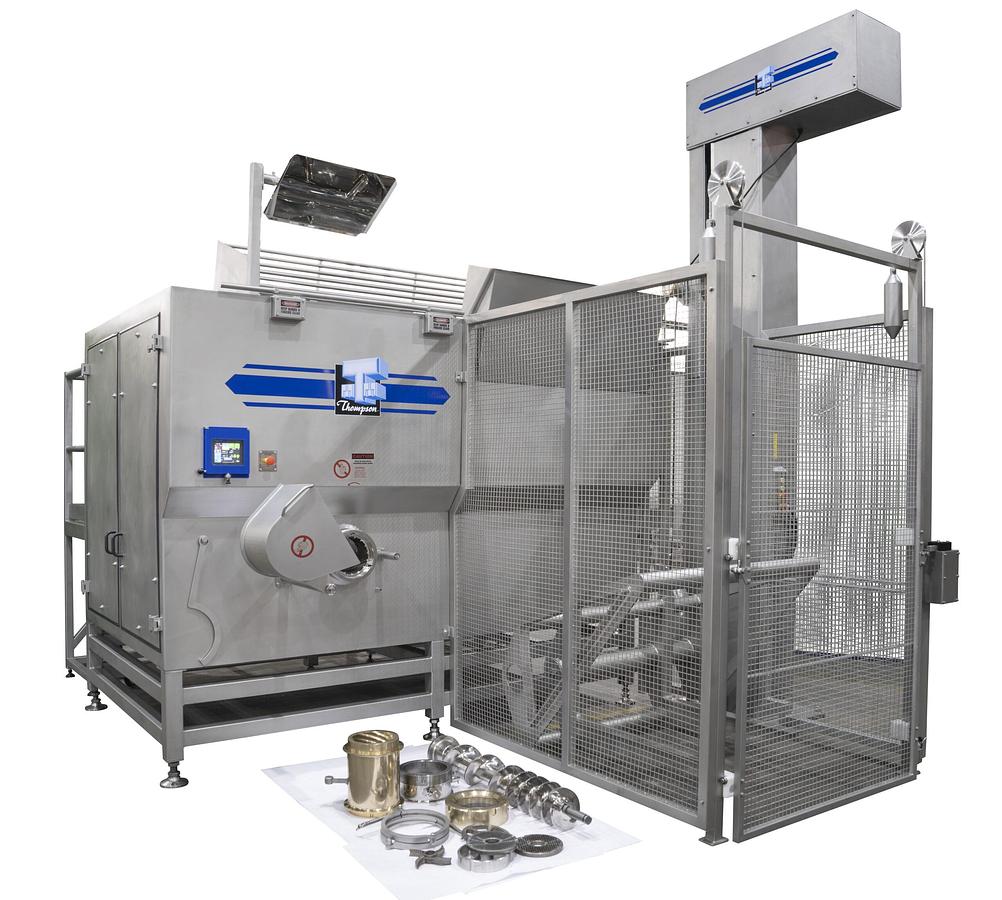

Thompson 92500 Industrial Mixer Grinder

The Thompson 92500 Mixer Mincer / Mixer Grinder is a heavy-duty, high-capacity industrial meat processing machine designed for large-scale mixing and grinding operations. Featuring a 2,500 kg / 5,500 lb fresh-meat batch capacity, twin-paddle mixing system and Thompson’s available High Efficiency Cutting System (HECS), the 92500 is built for high-volume meat processors requiring fast production, consistent particle definition and efficient batch processing.

The right-angle grinding design uses a short 170 mm / 6.7" feedscrew without a separate transfer screw, helping provide high product flow while minimizing unnecessary working of the meat. Available HECS configurations can provide primary grinding rates of up to 21,000 kg/hr / 46,300 lbs./hr.

Features

• Heavy-duty industrial meat mixer grinder
• 2,500 kg / 5,500 lb fresh-meat batch capacity
• Approx. 3,500 L / 920 gal. hopper capacity

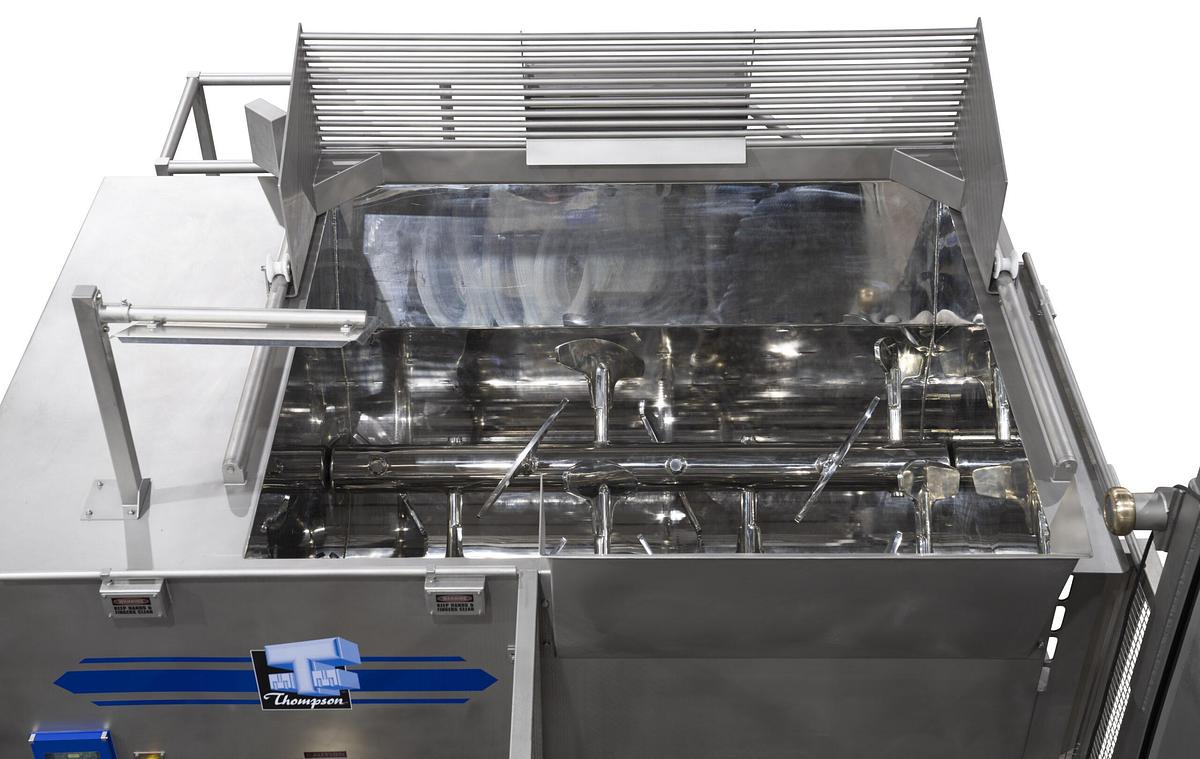

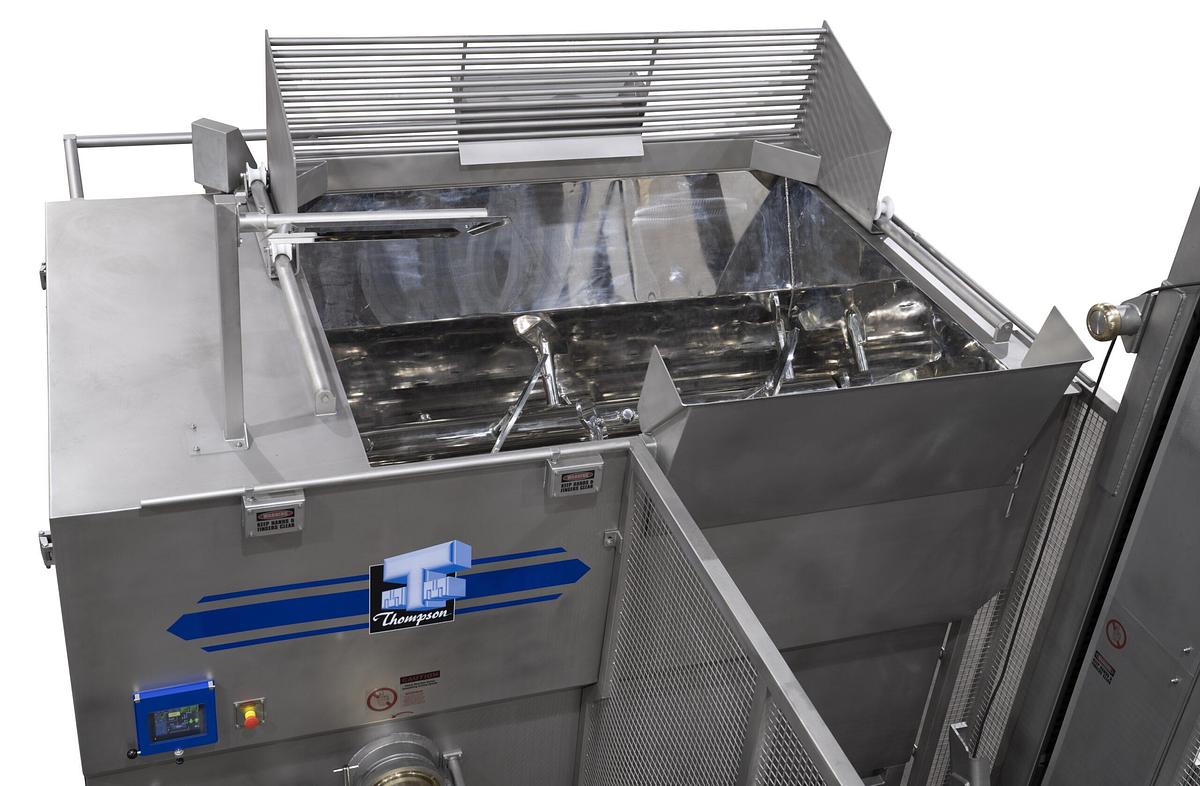

• Heavy-duty twin-paddle mixing system
• Counter-rotating, overlapping mixing paddles

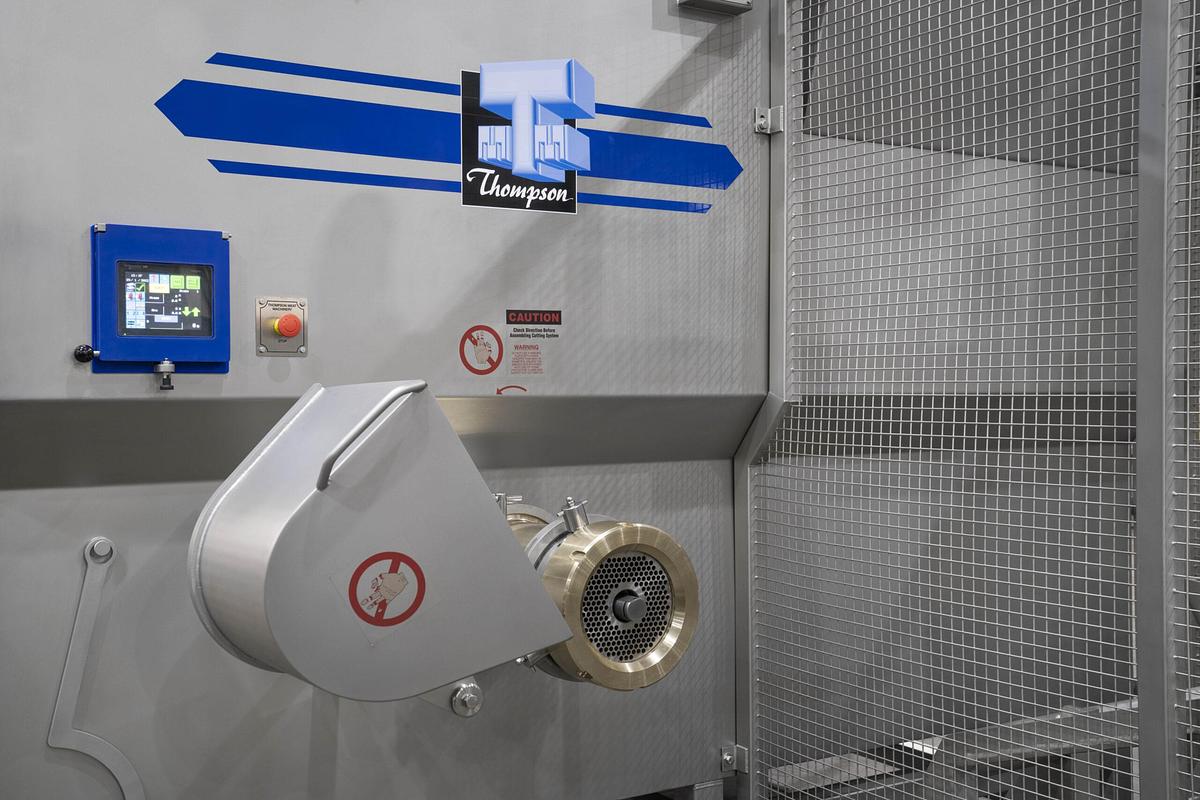

• Right-angle grinding configuration

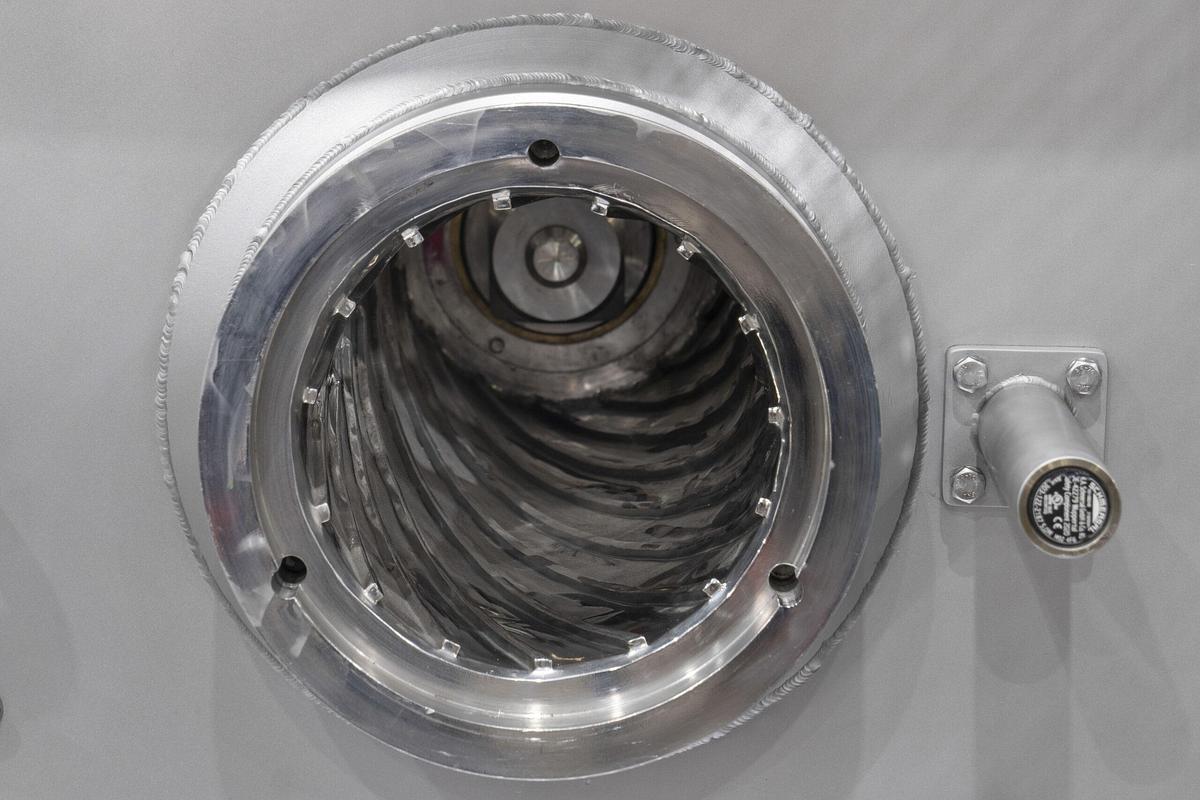

• 170 mm / 6.7" feedscrew

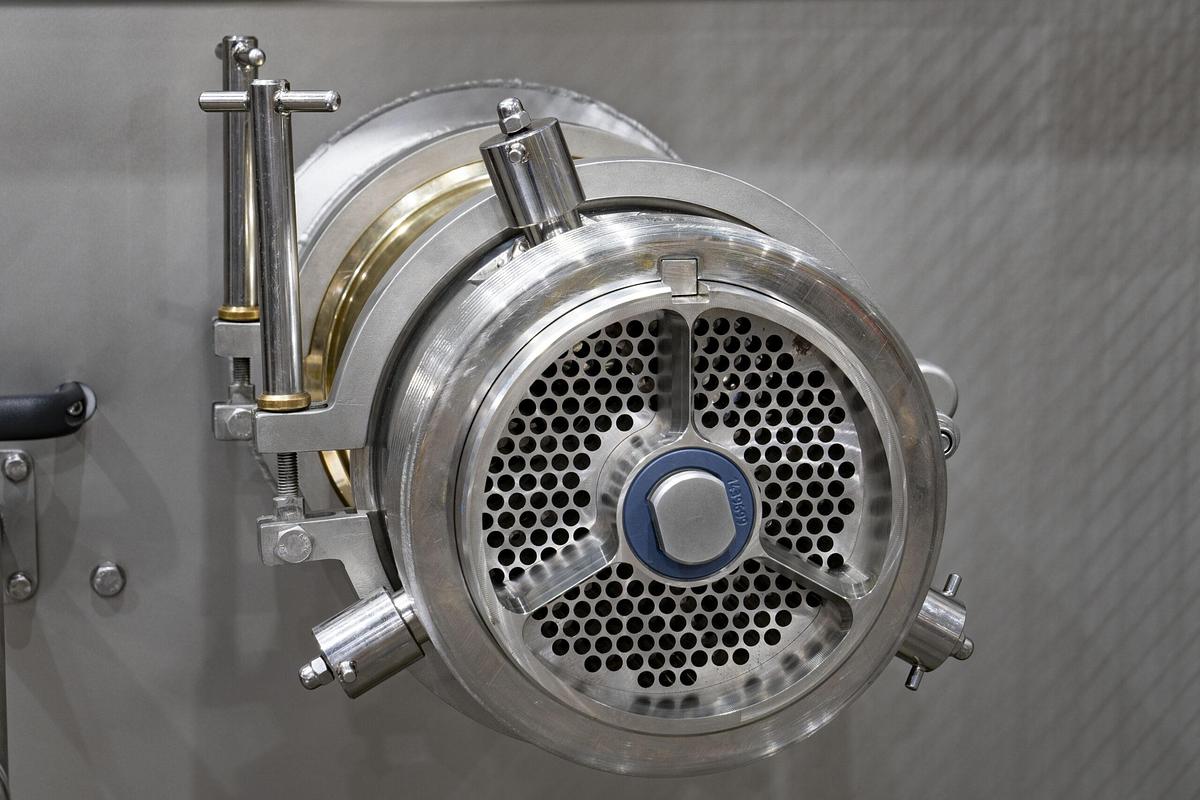

• Standard 220 mm / 8.7" cutting system
• Available 280 mm / 11" HECS
• Available 355 mm / 14" HECS
• High-capacity primary and secondary grinding
• Full stainless-steel construction
• Available automated controls and cryogenic cooling systems

Specifications

Manufacturer: Thompson Meat Machinery

Model: 92500

Series: 9000 Series

Condition: New

Configuration: Right-Angle Mixer Grinder

Nominal Hopper Capacity: 3,500 L / 920 gal.

Fresh Meat Batch Capacity: 2,500 kg / 5,500 lbs.

Bowl Capacity – Top of Paddles: 2,530 L / 668 gal.

Bowl Capacity – Top of Bowl: 3,410 L / 900 gal.

Mix Capacity: Approximately 5 × 750 L / 200-gal. bins

Mix Motor: 15 kW / 20 HP

Standard Grind Motor: 22 kW / 30 HP

Optional Grind Motors: 30 kW / 40 HP or 37 kW / 50 HP

Feedscrew Diameter: 170 mm / 6.7"

Standard Cutting System: 220 mm / 8.7"

Optional HECS Cutting Systems: 280 mm / 11" or 355 mm / 14"

Production Capacity

• Primary Cut – 13 mm / 1/2" Plate: Up to 15,000–21,000 kg/hr. / 33,000–46,300 lbs./hr.
• Primary Cut Rate: Up to 250–350 kg/min. / 550–770 lbs./min.
• Secondary Cut – 4 mm / 5/32" Plate: Up to 12,000 kg/hr. / 26,500 lbs./hr.
• Secondary Cut Rate: Up to 200 kg/min. / 440 lbs./min.

Production rates vary depending on cutting system, product, product temperature and machine configuration.

Electrical

Available 60 Hz configurations include:

• 460V: 69A full-load current
• 230V: 137A full-load current
• 208V: 151A full-load current

Manufacturer specifications list a 22 kW / 30 HP standard grinding motor, with 30 kW / 40 HP and 37 kW / 50 HP configurations available on selected machines.

Dimensions

• Maximum Length: 143.5" / 3,645 mm
• Machine Body Length: 124.8" / 3,170 mm
• Machine Width: 82.5" / 2,095 mm
• Maximum Width: 135.2" / 3,435 mm
• Machine Height: 91.8" / 2,332 mm
• Maximum Height: 171.3" / 4,350 mm
• Loading Height: 41.3" / 1,050 mm

Dimensions can vary depending on machine configuration and accessories.

Available Options

• 280 mm / 11" High Efficiency Grind System
• 355 mm / 14" High Efficiency Grind System
• 30 kW / 40 HP grinding drive
• 37 kW / 50 HP grinding drive
• End discharge chute
• VFD-controlled mixing paddles
• VFD-controlled feedscrew

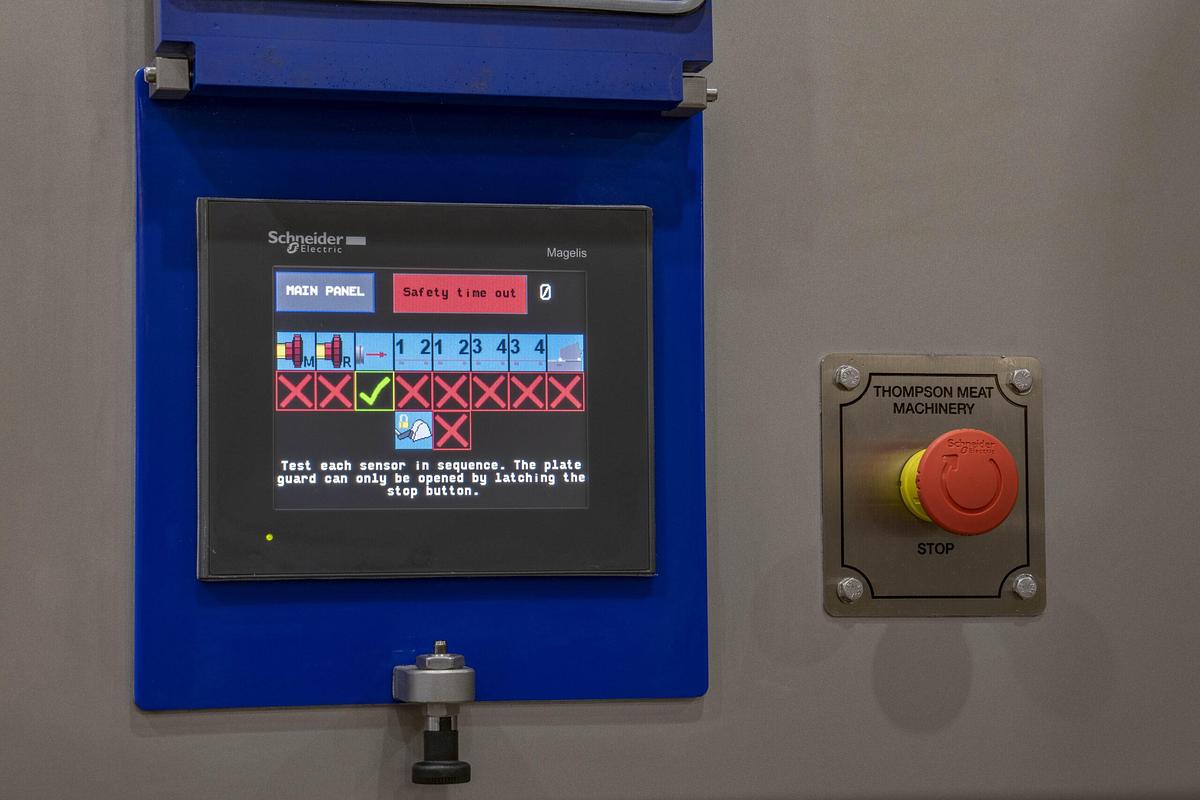

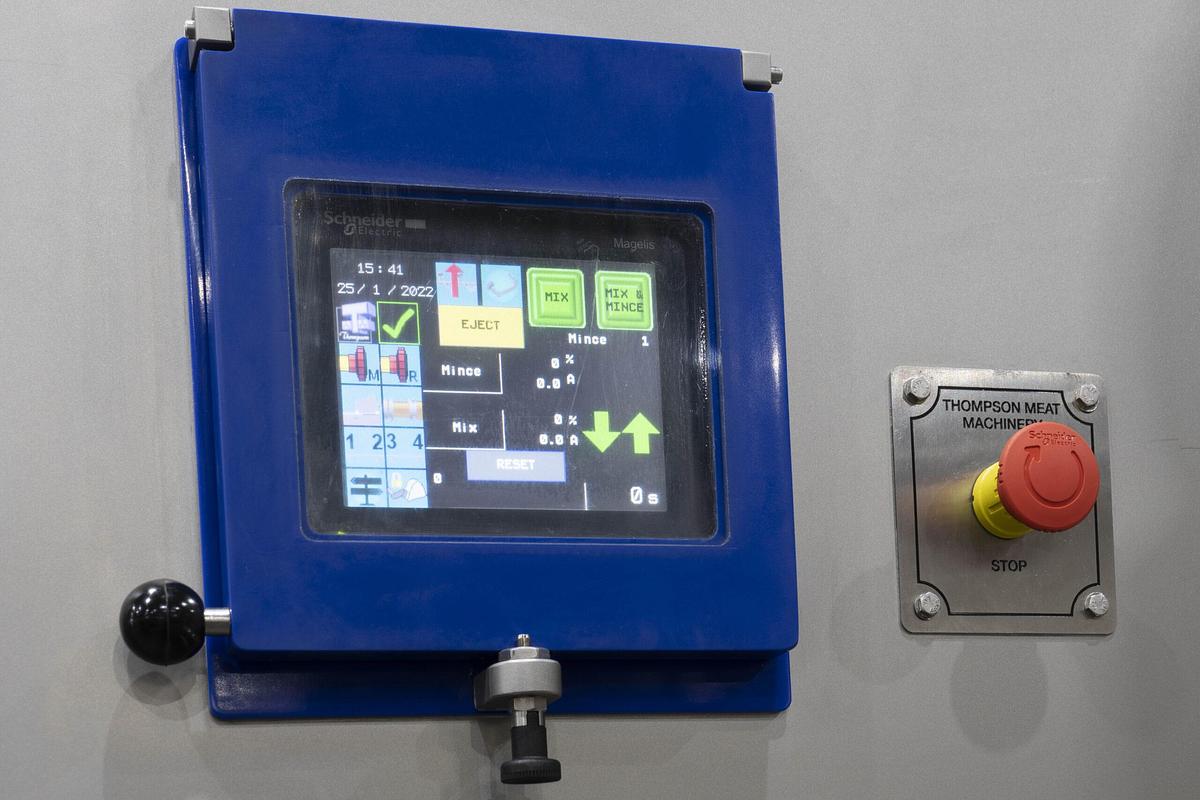

• PLC with HMI controls
• Polished bowl and paddles
• Pneumatic feedscrew ejector
• Auto-reversing feedscrew
• Bone elimination system with pneumatic air purge
• Scale stand
• Step and platform assembly

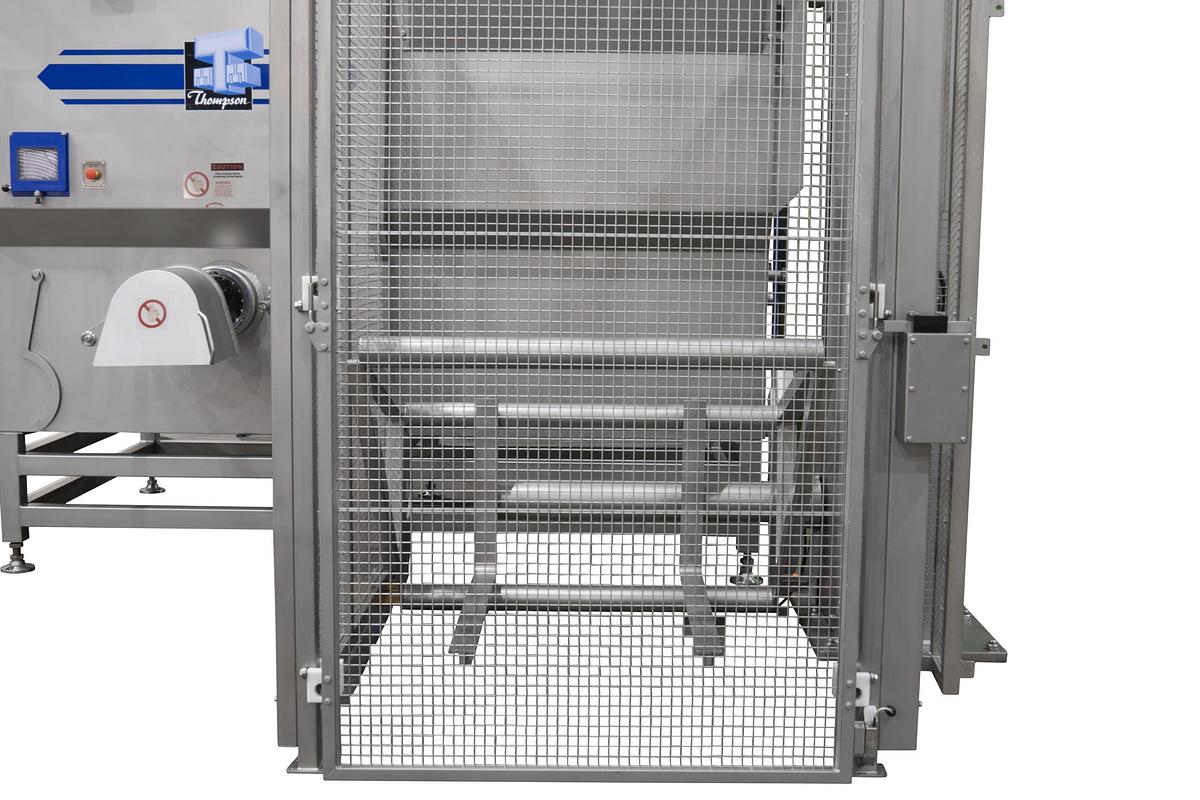

• Interlocked hopper and discharge guarding
• Light curtains
• Feedscrew trolley
• Water monitoring with PLC control
• Product temperature readout
• Grill lid and automatic lid release
• Hydraulic heavy-duty lid
• CO₂ bottom injection cooling
• CO₂ top injection through snow cones
• CO₂ cross-flow extraction plenum
