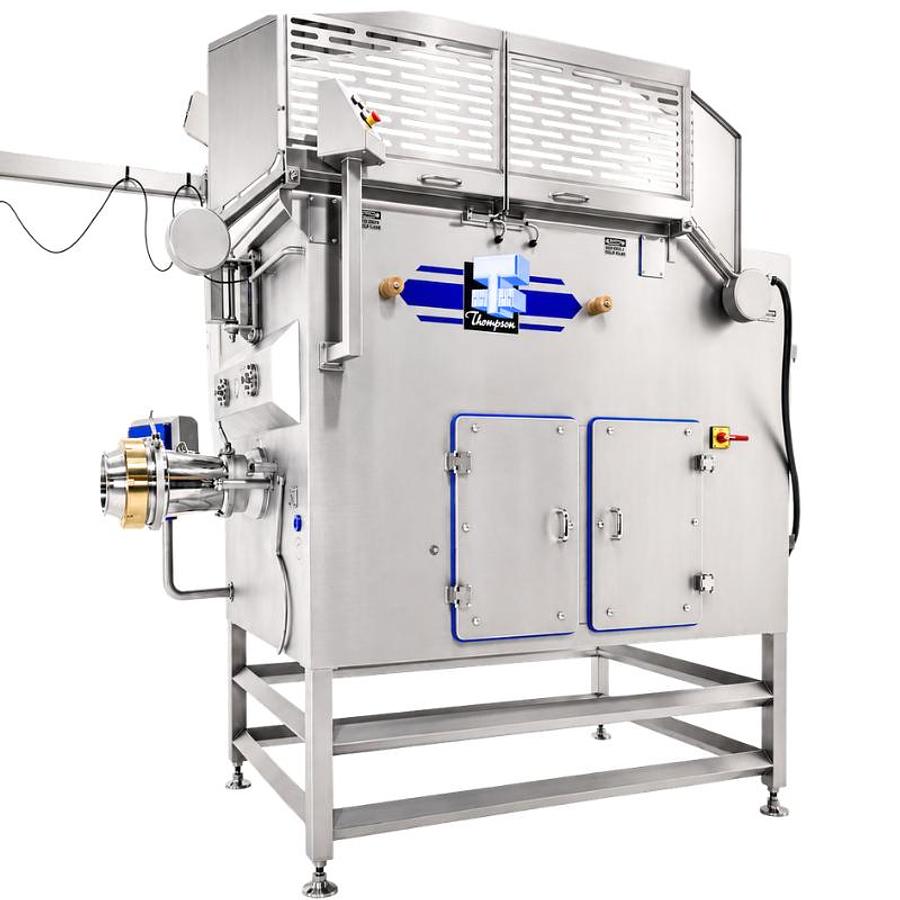

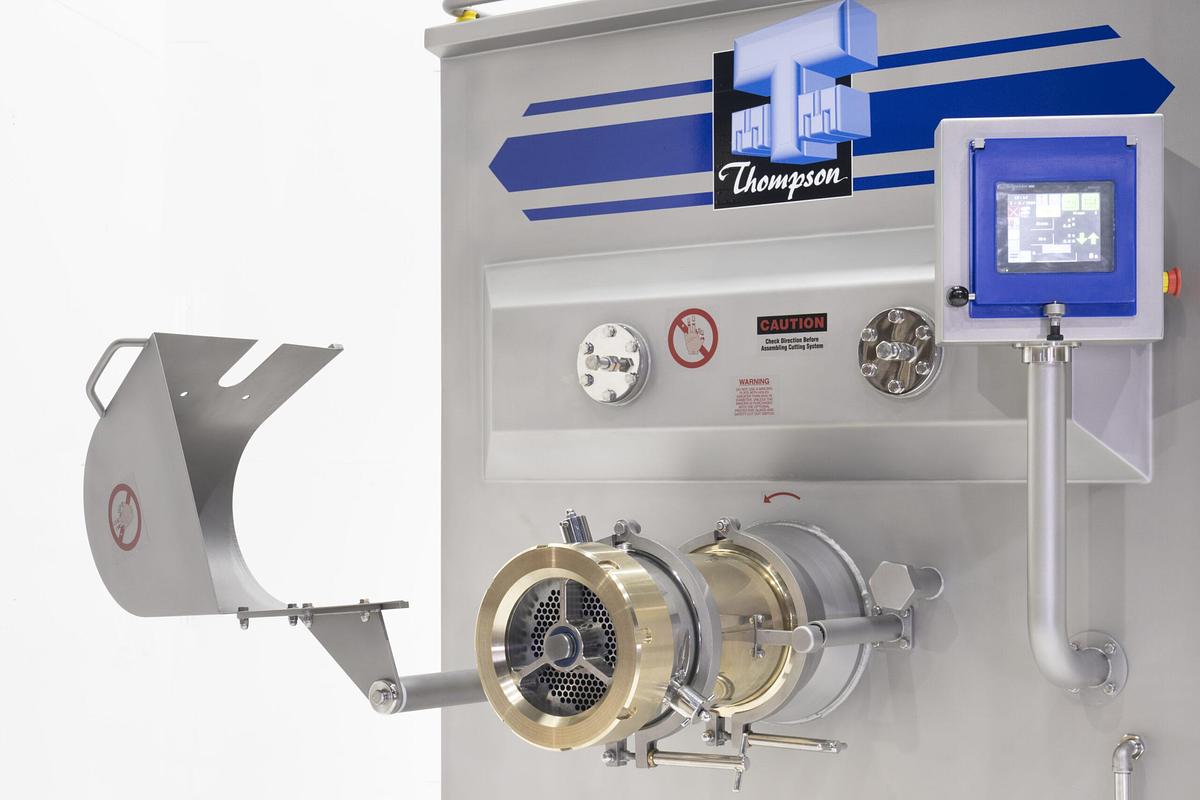

Thompson 91000 Industrial Mixer Grinder

The Thompson 91000 Mixer Mincer / Mixer Grinder is a heavy-duty industrial meat processing machine designed for high-volume mixing and grinding applications. Part of Thompson Meat Machinery’s 9000 Series, the 91000 combines a large-capacity twin-paddle mixing system with a powerful grinding system for efficient processing of fresh meat, trim, sausage products and other meat applications.

Designed for demanding food processing environments, the Thompson 91000 features heavy-duty stainless steel construction, independent mixing and grinding drives, and Thompson’s 66 High Efficiency Cutting System (HECS). The short feedscrew design helps reduce unnecessary working of the product while maintaining excellent particle definition, product consistency and minimal temperature rise.

Features

• Heavy-duty industrial meat mixer grinder
• Stainless steel construction

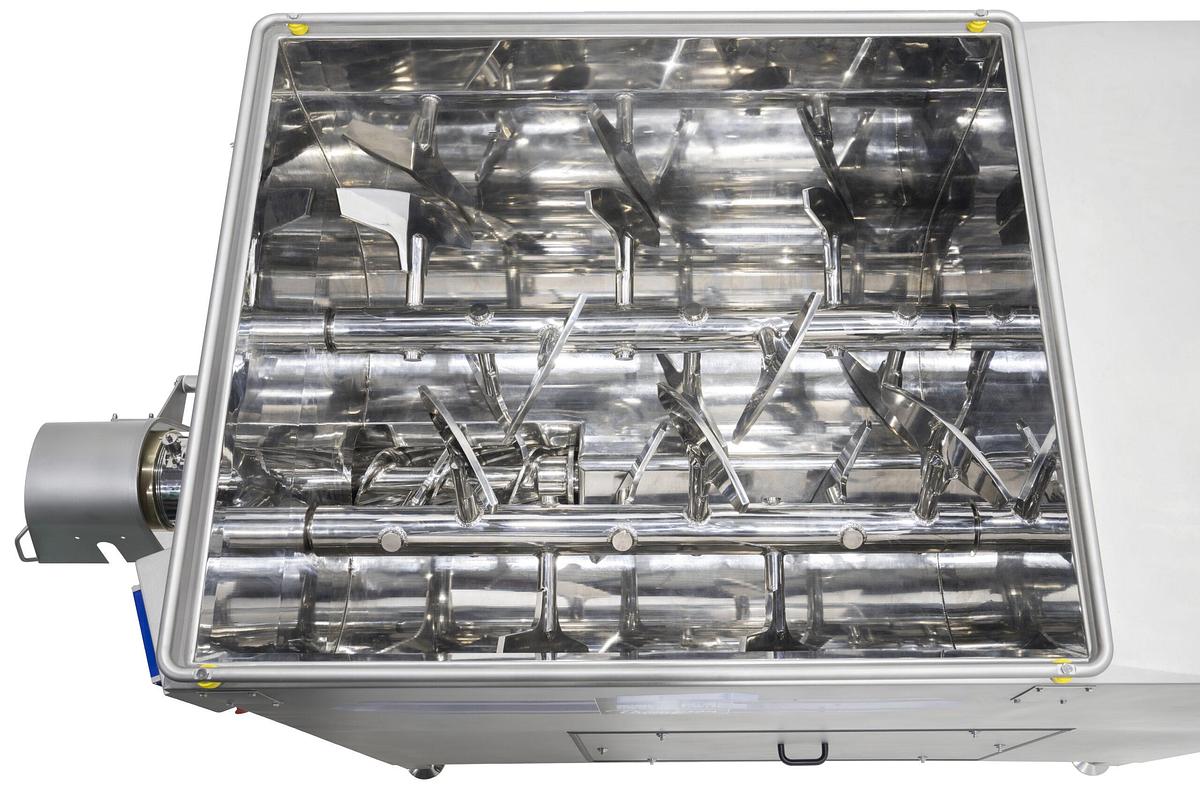

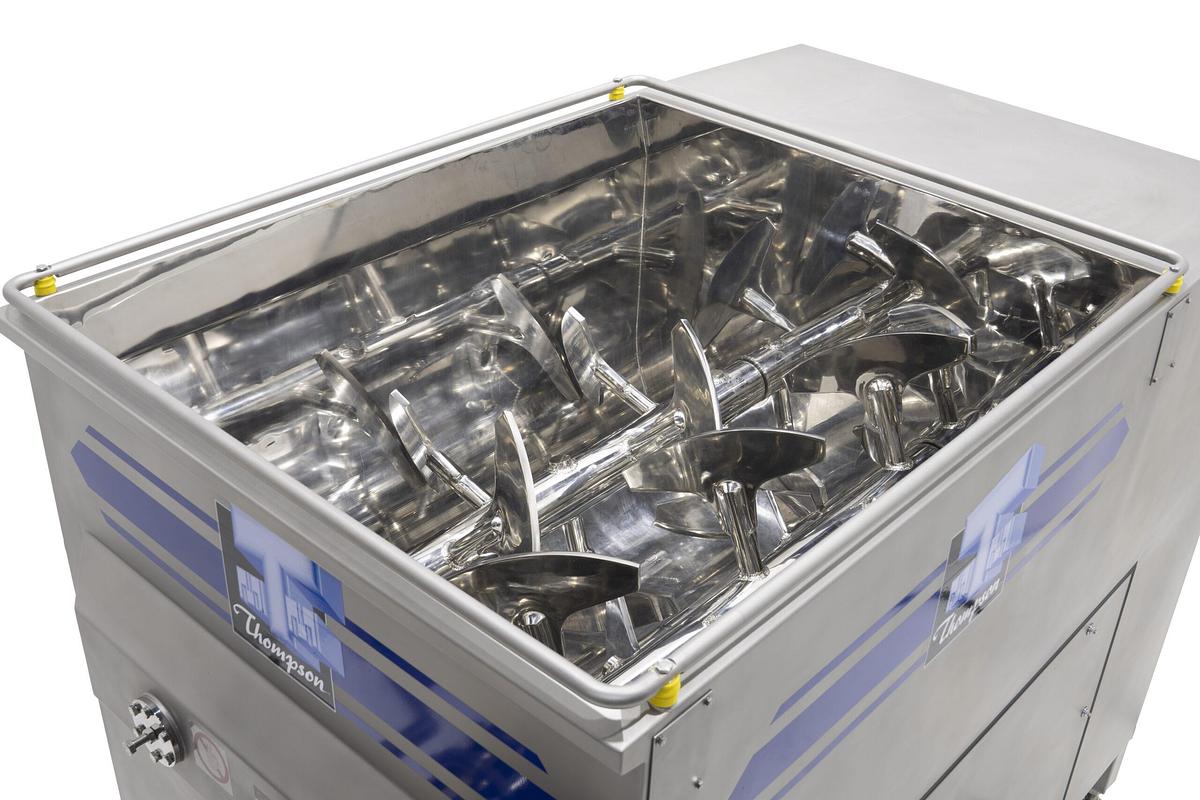

• Twin-paddle mixing system

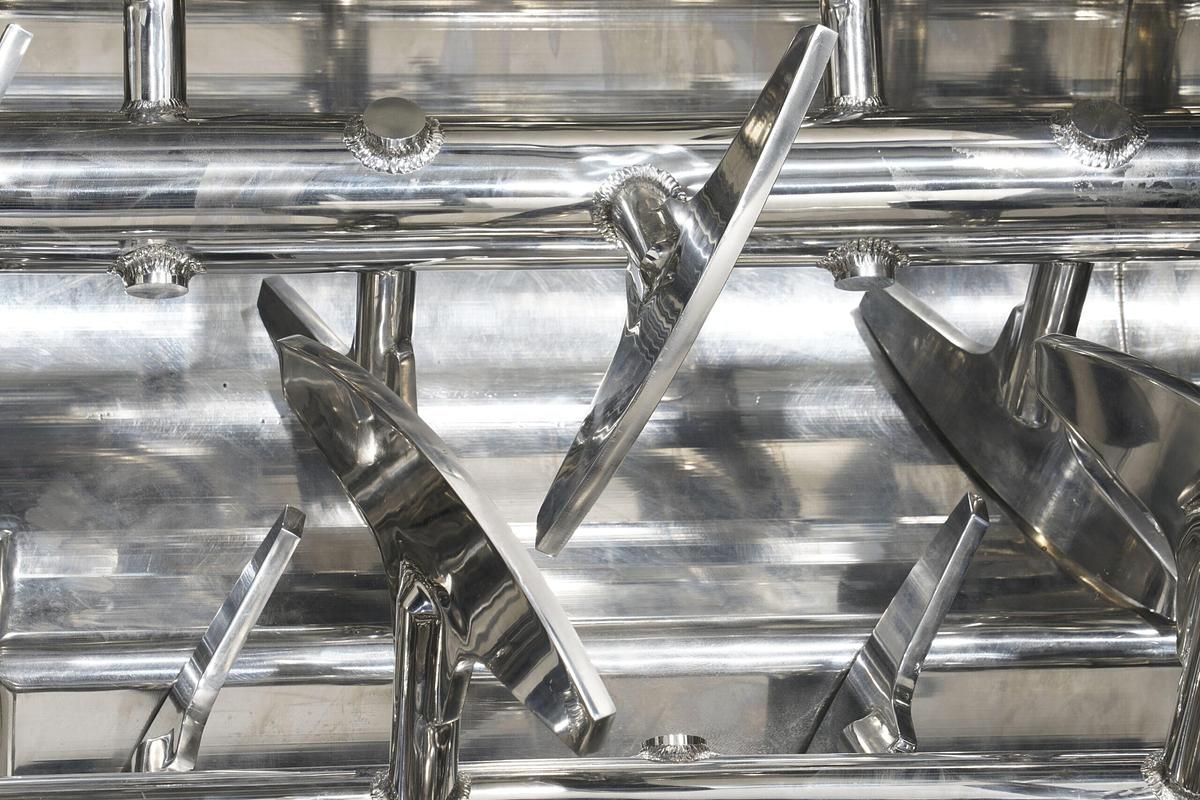

• Counter-rotating, overlapping mixing paddles
• Programmable reciprocating mixing action

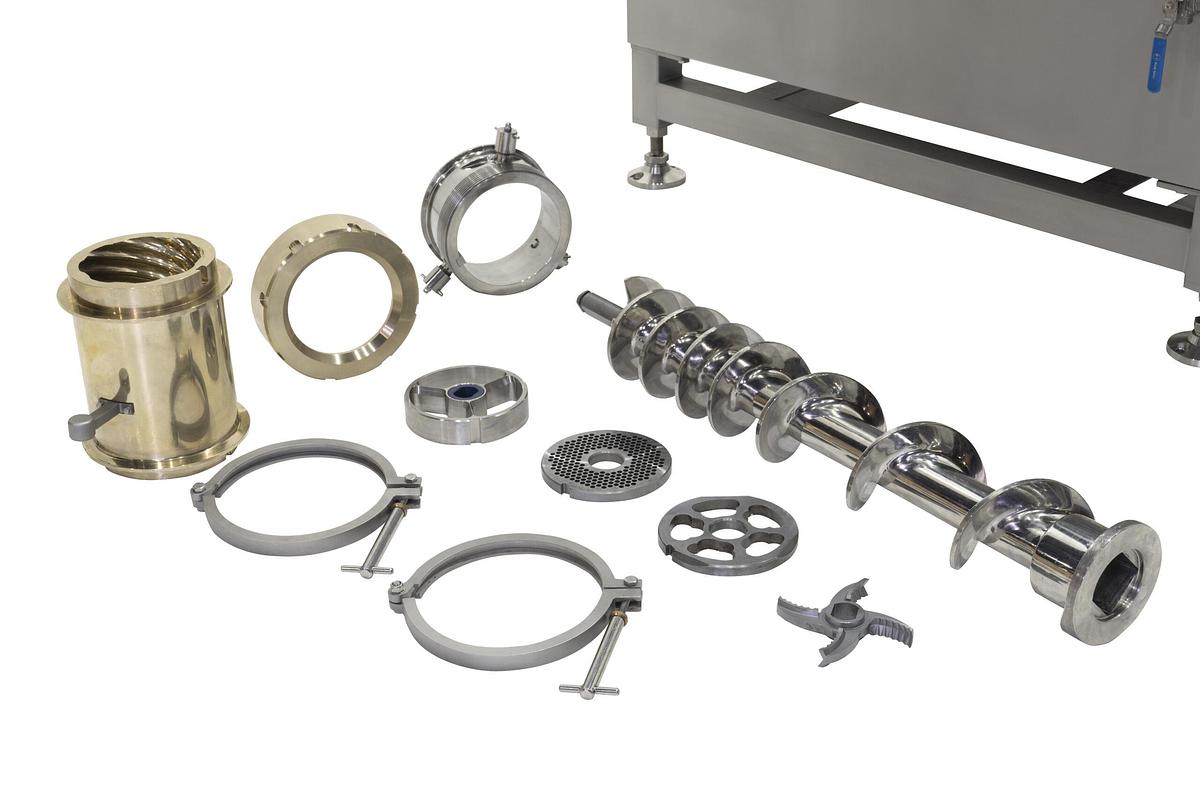

• Thompson 66 High Efficiency Cutting System (HECS)
• Short feedscrew design for reduced product working
• Independent mixing and grinding drives
• 2-speed grinding drive
• Pneumatic feedscrew ejector

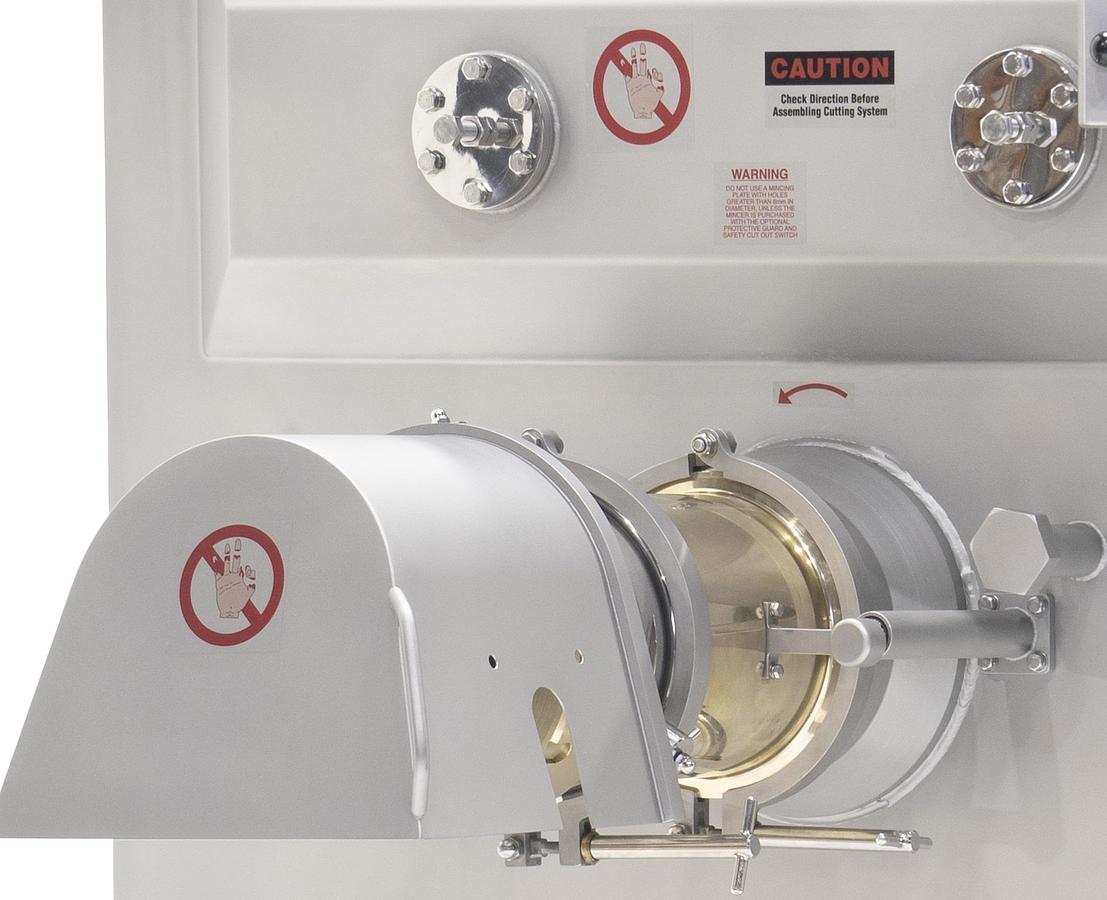

• Safety-interlocked discharge guarding
• Designed for high-volume meat processing applications
• Available with multiple cutting system and automation options

Specifications

Model: Thompson 91000

Series: 9000 Series

Condition: New

Mixing Motor: 11 kW / 15 HP

Grinding Motor: 22 kW / 30 HP

Grinding Drive: 2-Speed

Bowl Capacity – Top of Paddles: 1,110 L / 293 gal.

Bowl Capacity – Top of Bowl: 1,570 L / 414.7 gal.

Mix Capacity: Five 200 L / 50-gal. bins

Standard Cutting System: 66 HECS

Production Capacity – 66 HECS + VFD

• 1/2" (12.7 mm) Plate – First Cut: Up to 20,500 lbs./hr. / 9,300 kg/hr.
• 1/4" (6.35 mm) Plate – Second Cut: Up to 19,200 lbs./hr. / 8,700 kg/hr.
• 9/64" (3.57 mm) Plate – Second Cut: Up to 19,200 lbs./hr. / 8,700 kg/hr.
• Sausage Emulsion, 1/4" Plate: Up to 19,200 lbs./hr. / 8,700 kg/hr.
• Sausage Emulsion, 9/64" Plate: Up to 15,200 lbs./hr. / 6,900 kg/hr.

Production rates vary depending on product, product temperature and machine configuration.

Electrical

Available 60 Hz configurations include:

• 460V: 61A full-load current
• 230V: 122A full-load current
• 208V: 135A full-load current

Dimensions

Maximum Length: 125.5" / 3,187 mm

Machine Body Length: 104.7" / 2,660 mm

Machine Width: 58.3" / 1,480 mm

Maximum Width: 88.2" / 2,240 mm

Loading Height: 37.4" / 950 mm

Machine Height: 78.9" / 2,005 mm

Maximum Height: Up to 137.8" / 3,500 mm depending on configuration

Available Options

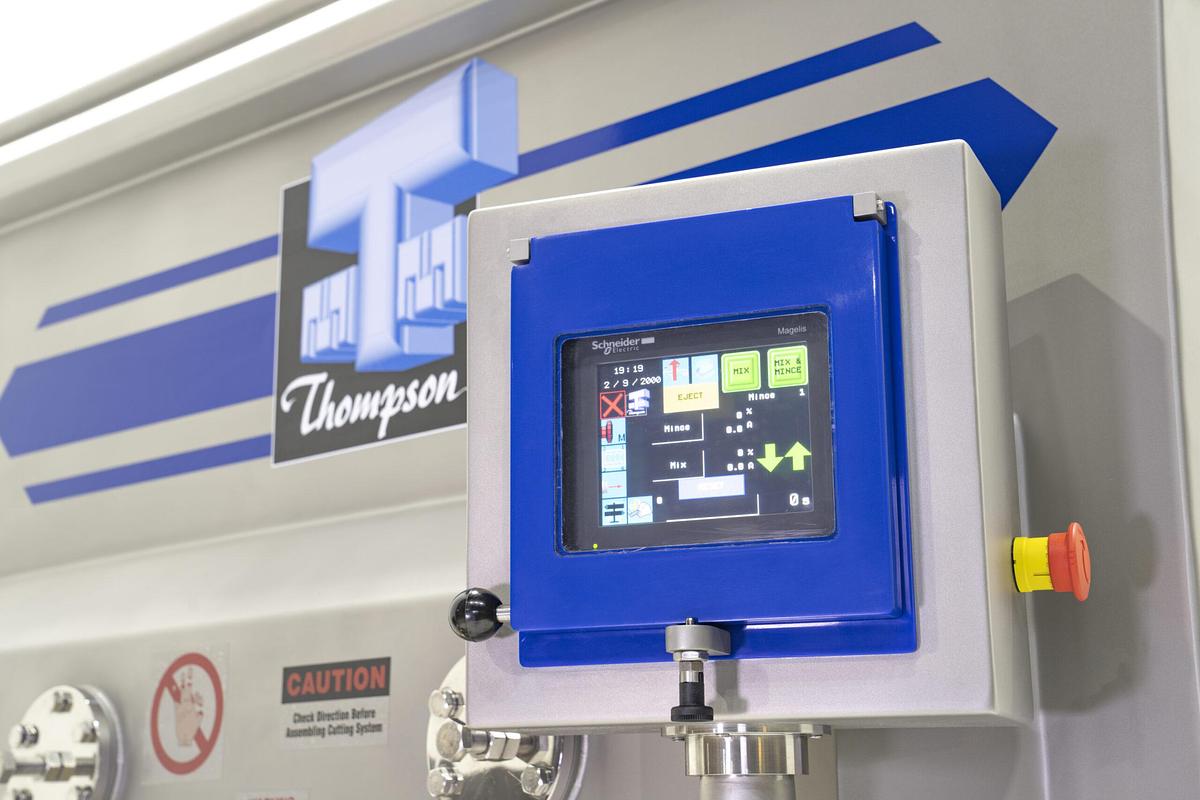

Options include upgraded 40 HP and 50 HP grinding motors, VFD controls, alternate cutting systems, PLC/HMI controls, polished bowl and paddles, end discharge, automatic feedscrew reversing, bone elimination systems, light curtains, weighing systems, water monitoring, product temperature monitoring, platforms, guarding and cryogenic cooling configurations.
