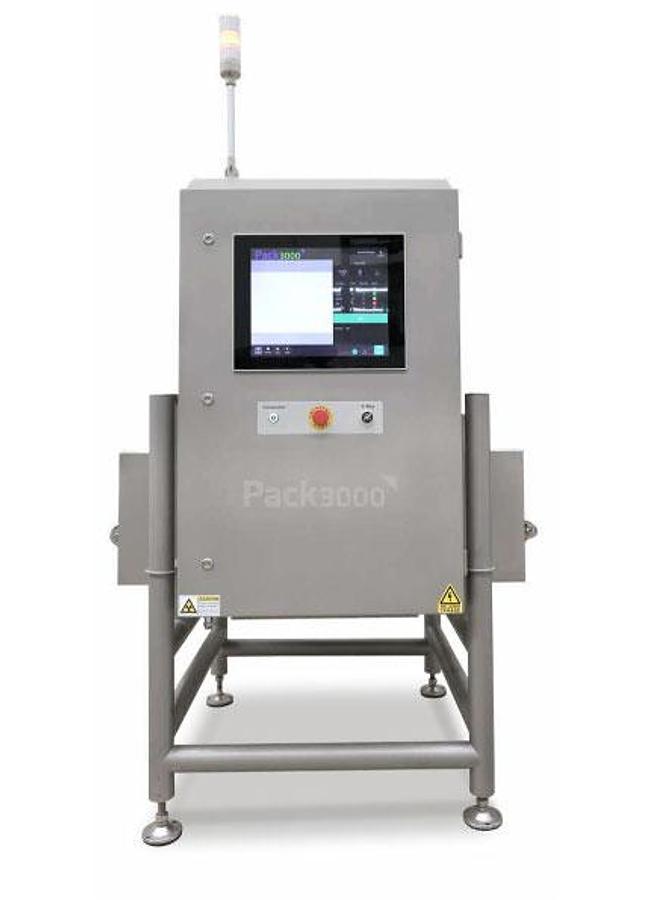

MegaPac from RAM Equipment MDSP3KSX6016 X-RAY Machine for Food Processing

The MegaPac P3KSX AI is a high-performance x-ray inspection system engineered for large-scale packaged food (and pharmaceutical) products. It delivers exceptional contaminant detection, stable performance across a wide range of product temperatures and moisture levels, and seamless line integration—helping you protect your brand while keeping throughput high and false rejects low.

251023_quote_xray_EST-102729

What it inspects best

Optimized for foil-wrapped and non-foil packaging, including plastic containers, cardboard boxes, pouches, trays, tubes, sachets, PET bottles, and blister packs—without being affected by temperature or humidity changes in the product.

251023_quote_xray_EST-102729

Key features

• AI-enhanced x-ray inspection for maximum sensitivity on packaged goods.
• 251023_quote_xray_EST-102729
• Large inspection window: 600 mm width × 160 mm height (ideal for family-size trays, multipacks, and case-ready formats).
• 251023_quote_xray_EST-102729
• Integrated reject system with a large, lockable stainless reject bin (supports multiple reject mechanisms).
• 251023_quote_xray_EST-102729
• Industrial PC (Windows 10) with 17" touchscreen HMI—simple, operator-friendly controls.
• 251023_quote_xray_EST-102729
• Full data connectivity: LAN + USB; automatic NG/OK image capture (500 GB), history logs, and production monitoring.
• 251023_quote_xray_EST-102729
• Hygienic design: Stainless steel SUS304, sandblasted finish; IP65 detection area for wash-down in the product zone.
• 251023_quote_xray_EST-102729
• Security & safety: Multi-level passwords; alarm & stop functions; x-ray leakage ≤ 1 µSv/h.
• 251023_quote_xray_EST-102729
• Wide environmental range: −10 °C to 40 °C with industrial air-conditioner cooling; 30–90% RH (no frost) with dehumidification.
• 251023_quote_xray_EST-102729
• High-throughput conveyor engineered for packaged production lines.
• 251023_quote_xray_EST-102729

Detection performance (typical test pieces)

• Stainless steel (SUS304) ball: 0.4 mm
• Stainless steel wire: 0.3 × 2 mm
• Ceramics & glass: 1.0 mm
• These values are indicative of the machine’s high sensitivity on packaged products. Actual results vary with product density, shape, fill level, and packaging.
• 251023_quote_xray_EST-102729

Throughput hardware & handling

• Conveyor width: 600 mm
• Conveyor length: 2,000 mm
• Belt height: 800 mm ± 50 mm
• Speed: 10–60 m/min (line-matching flexibility)
• Max product weight on belt: 50 kg

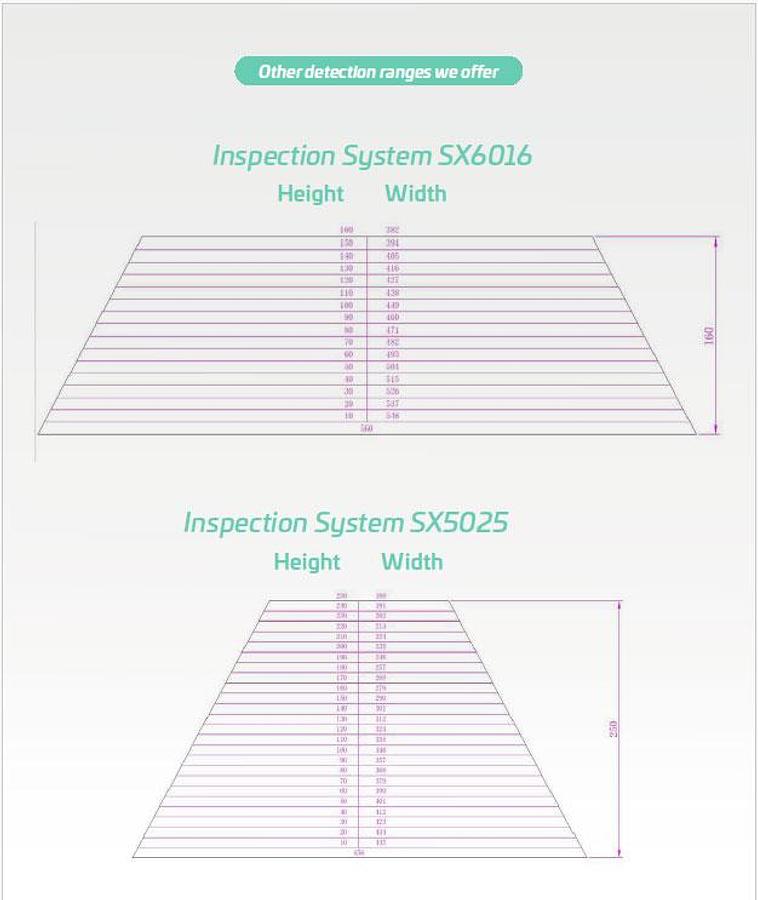

• Aperture (inspection window): 600 mm (W) × 160 mm (H)
• Multiple reject options available; supplied with lockable reject bin.
• 251023_quote_xray_EST-102729

X-ray generator & safety

• Max x-ray power: 210 W
• Tube voltage: up to 80 kV
• Leakage: ≤ 1 µSv/h (meets stringent safety norms)
• Product zone protection: IP65 in detection area.
• 251023_quote_xray_EST-102729

Controls, software & traceability

• Industrial computer, Windows 10 with 17" HMI touchscreen
• LAN and USB data interfaces
• Auto image save (NG/OK), 500 GB storage
• Production history & monitoring logs
• Multi-password levels for role-based access
• Alarm & stop interlocks for events and rejects
• USB data acquisition & network cable included for connectivity.
• 251023_quote_xray_EST-102729

Construction & hygiene

• All stainless steel (SUS304), sandblasted finish
• IP65 in detection area; wash-down friendly product zone
• Large, lockable stainless reject bin for controlled access and safer QA handling.
• 251023_quote_xray_EST-102729

Utilities & operating environment

• Power: AC 220 V ± 10%, 50/60 Hz, 1.5 kVA max
• Ambient temperature: −10 °C to 40 °C (integrated industrial air-conditioner cooling)
• Humidity: 30–90% RH, no frost (integrated dehumidification).
• 251023_quote_xray_EST-102729

Benefits for food processors

• Detects what metal detectors miss: Finds dense non-metal contaminants (glass, ceramic, calcified bone, some rubber/plastics) and small stainless steel pieces—even in foil packaging.
• 251023_quote_xray_EST-102729
• Fewer false rejects: Stable performance despite product temperature or moisture changes—keep yields high and rework low.
• 251023_quote_xray_EST-102729
• Audit-ready records: Automatic NG/OK image capture with 500 GB storage plus event history—ideal for QA traceability and regulatory audits.
• 251023_quote_xray_EST-102729
• Line integration made easy: Wide belt, adjustable height, and 10–60 m/min speed range allow smooth fit on existing conveyors.
• 251023_quote_xray_EST-102729
• Hygienic & robust: SUS304 construction and IP65 product zone support sanitation SOPs and long service life.
• 251023_quote_xray_EST-102729
• Operator-friendly: 17" touchscreen HMI, clear alarms, and role-based access reduce training time and error risk.
• 251023_quote_xray_EST-102729
• Secure reject handling: Lockable bin improves product security and simplifies QA review and reconciliation.
• 251023_quote_xray_EST-102729

Typical applications

• Ready-meal trays, MAP trays, and case-ready packs
• Retort pouches and sauce pouches
• Foil-wrapped confectionery or dairy
• PET bottle beverages and nutraceuticals
• Cartons, tubes, sachets, blister packs, and multi-packs.
• 251023_quote_xray_EST-102729

Technical specifications (summary)

CategorySpecificationInspection aperture600 mm (W) × 160 mm (H)Sensitivity (typical)SUS304 ball 0.4 mm; SUS wire 0.3 × 2 mm; Ceramic/Glass 1.0 mmX-rayMax 210 W, up to 80 kVConveyor600 mm W × 2,000 mm L, 800 mm ± 50 mm belt heightSpeed10–60 m/minMax product weight50 kg on beltConstructionSUS304, sandblasted; IP65 detection areaHMI & OS17" touch, Windows 10 industrial PCData & storageLAN, USB; 500 GB NG/OK image save; history logs; multi-passwordSafety≤ 1 µSv/h leakage; alarm & stop; lockable reject binEnvironment−10 °C to 40 °C (industrial A/C); 30–90% RH, no frost (dehumidifier)PowerAC 220 V ± 10%, 50/60 Hz, 1.5 kVA maxOptionsMultiple reject mechanisms available

All specifications per current quotation; subject to application validation and change without notice.
