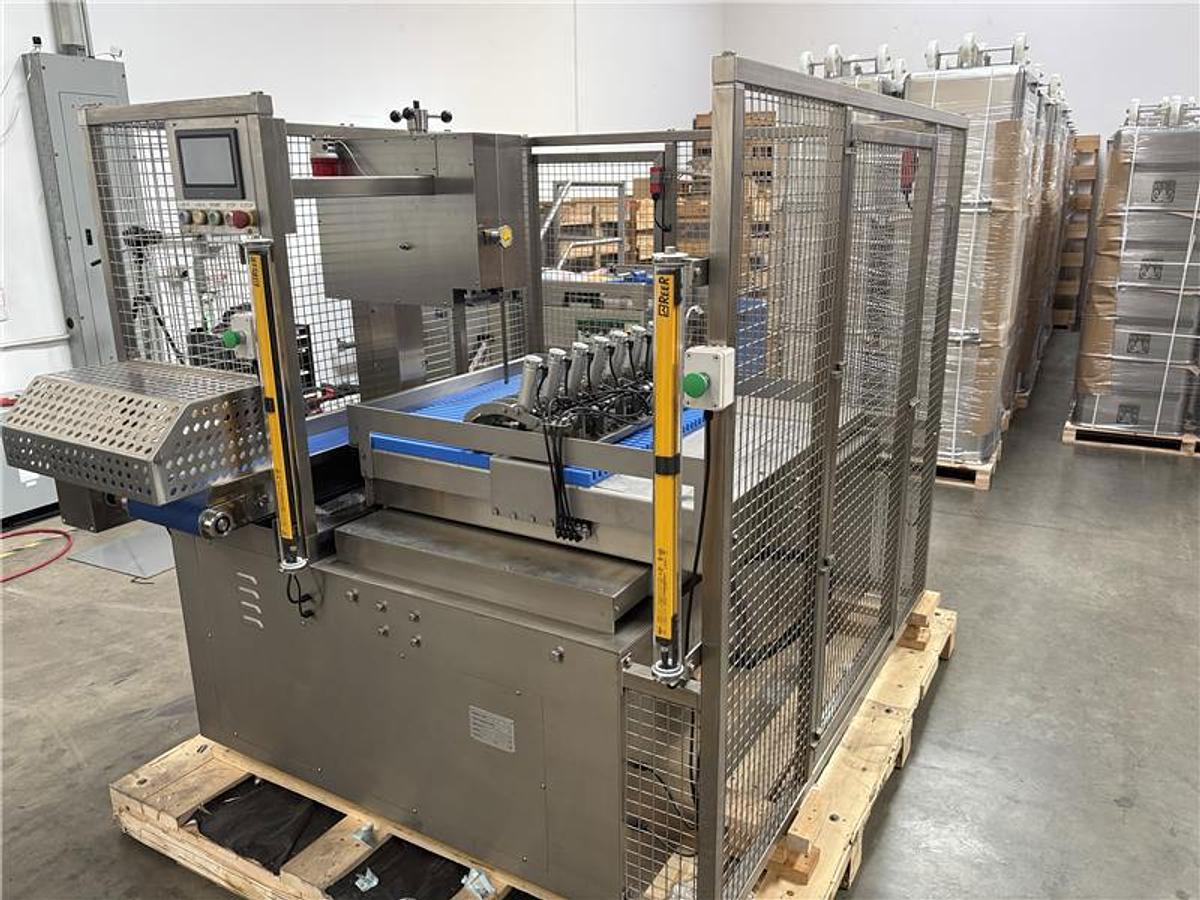

RAM ABS-42 Automatic Bandsaw

ABS-42 Automatic Bandsaw – Precision, Safety & Performance in One Powerful Machine.

The ABS-42 Automatic Bandsaw is a high-performance, double-cut bandsaw engineered for industrial meat processors who demand precision, safety, and operational efficiency. Built with a rugged stainless steel frame and designed for fully automated operation, the ABS-42 is a true workhorse for high-volume cutting of frozen or fresh meat products.

Whether you're making thin precision slices or thick cuts, this machine offers easy, quick adjustments and high-speed cutting power to meet your processing demands with consistent results every time.

.

🔧 Key Features & Technical Specifications

• Cutting Thickness Range:
• 1 mm to 200 mm (0.03" to 7.87")
• Cutting Height Range:
• 30 mm to 150 mm (1.18" to 5.90")
• Motor Power:
• 5.5 HP cutting motor
• Blade Specifications:
• Saw blade length: 1,620 mm – 3,150 mm (63.8" – 124")
• Recommended blade: 4-tooth
• Blade speed: 38 m/s (125 ft/s)
• Air Compressor Requirement:
• 2 HP (compressor not included)
• Machine Weight:
• 2,210 lbs
• Chamber Size:
• 2.23 ft (L) × 2.5 ft (W) × 0.65 ft (H)
• Total Machine Dimensions:
• 78.7" (L) × 78.3" (W) × 70" (H)
• Electrical Requirements:
• 220V / 3 Phase / 60Hz | Power Consumption: 30 Amps

✅ Designed for Operator Safety

• Master Power Control Box – Shuts off power at setup for maximum safety before operation begins
• Safety Sensor Doors – Automatically cut power when the doors are opened during operation
• Thermal Overload & Under-Voltage Protection – Prevents electrical damage and ensures consistent power delivery
• Enclosed Blade Design – Minimizes risk of injury while maintaining full cutting visibility

🚀 Operational Advantages

• High-Speed Blade Performance – Cuts quickly and cleanly through even the toughest frozen products
• Quick-Adjust Mechanism – Easily transition between thin slices and thick cuts
• Automatic Double-Cut System – Increases productivity and ensures uniform cuts with minimal waste
• Hygienic Stainless Steel Construction – Easy to clean and compliant with food safety standards

🏭 Ideal for

• Meat processors
• Commercial kitchens
• Industrial cutting rooms
• High-volume food production lines

The ABS-42 Automatic Bandsaw delivers the perfect balance of precision cutting, operator safety, and maximum throughput. Its thoughtful safety features and powerful automation make it the go-to solution for businesses serious about meat processing performance.

👉 Contact us today to request a quote or schedule a demo.
