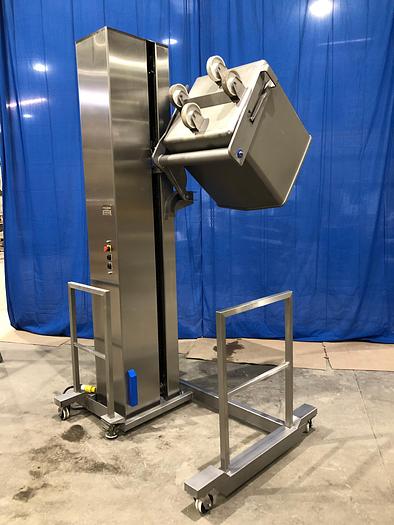

RAM Column Lift - CL9FT

RAM Manufacturing Equipment offers high-quality column lifts, also known as column dumpers, or buggy lifts in the United States, focusing on reliability and excellence.

Engineered to maximize productivity, our post dumpers are built to combine years of dependable performance with uncompromising product quality.

9ft Column Lift:

DUMP HEIGHT 66.5 TO 84.5 ( 400 LB CART )

60.875 TO 78.875 ( 600 LB CART )

Key Features:

Easy Operation and Access

Optimal Sanitation

Designed for Safety

Productivity Features:

Capacity: 1000 lbs.

Adjustable dump height

Variable discharge angle up to 45 degrees

Reliability Features:

High-efficiency/output gear motor

Positive lift chain (No. 100)

Nickel-plated chain and sprockets

Sanitary Features:

Constructed with stainless steel T-304

Equipped with a hinged door assembly

USDA approved

Standard Electrical Features:

Stainless steel NEMA 4X control panel

Start/stop pushbuttons

240/480V 3-phase standard

Available Options:

Programmable Controller: Allows custom synchronization and provides ease of control. Enhances productivity with soft start/stop switching and variable speed control.

Warning Lights and Safety Horn: Safety indicators to protect both personnel and equipment.

Custom Carriage Assemblies: Designed to accommodate barrels, drums, or any specific requirements.

Chutes: Customized options for controlling and directing product flow.

Portable Caddies: Sturdy caddies with four swivel casters and a floor brake.

Alternate Configurations: Available in left-hand or right-hand configuration.
