PSS Model SFV 705 Continuous Vacuum Stuffer

PSS Model SFV 705 Continuous Vacuum Stuffer
Contact us for price
Location:Corona, CA
or
Call 951-734-8152
Description
The PSS Model SFV 705 Continuous Vacuum Stuffer is a multifunctional device designed for small, medium and large industrial food processing operations. It provides near perfect filling of meat and other food products.

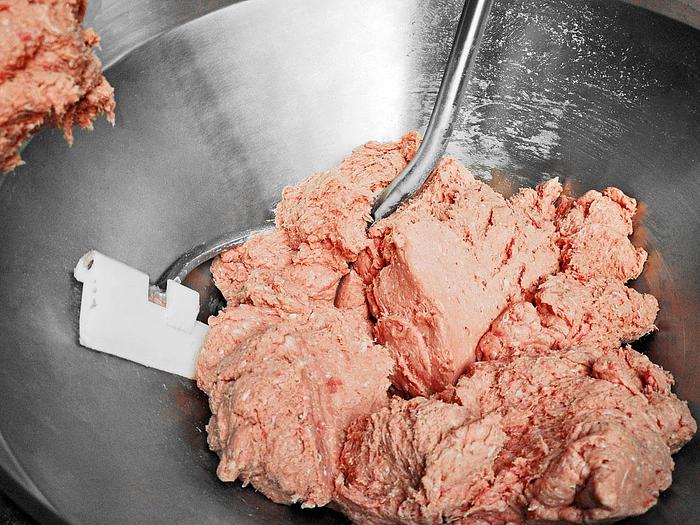

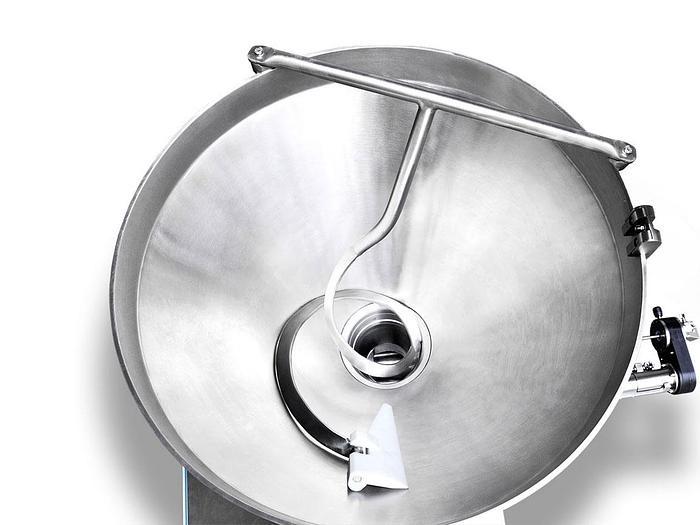

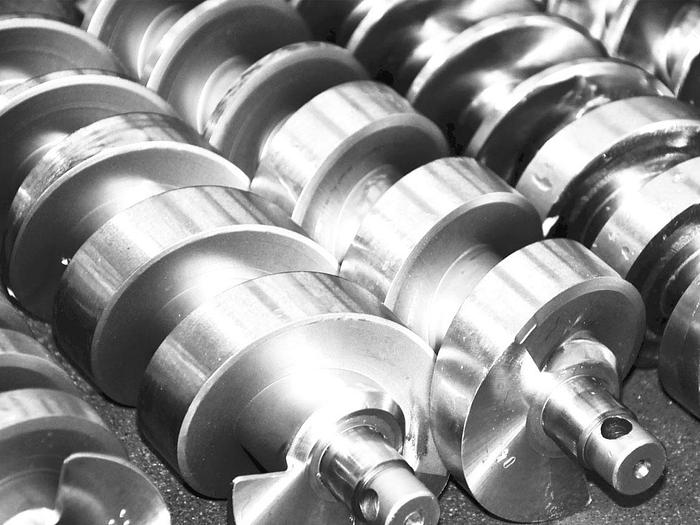

The PSS Model SFV 705 Continuous Vacuum Stuffer guarantees effective usage and ensures a continual process of metering and filling of processed materials. The processed material is fed into the PSS Model SFV 705 Continuous Vacuum Stuffer's hopper, where it is caught by two feeding worms that gently move it towards the metering device or to direct filling through the tube to the next process such as a clipping machine.

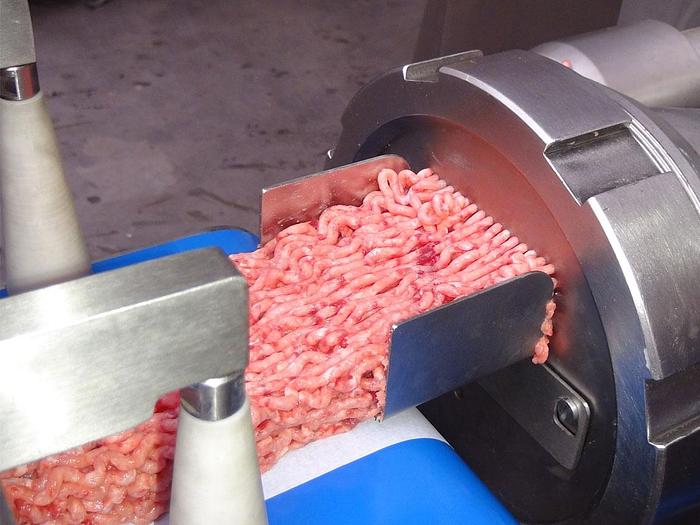

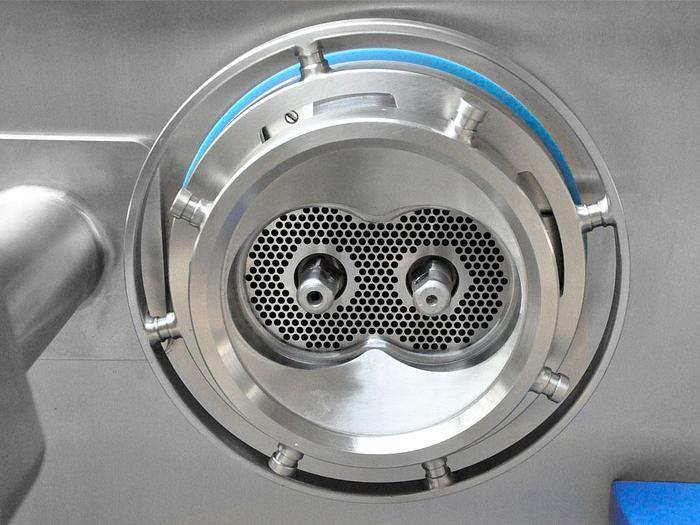

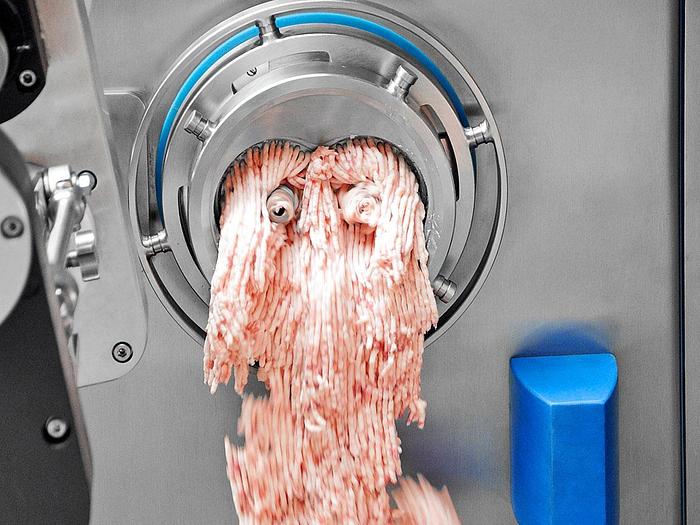

The PSS Model SFV 705 Continuous Vacuum Stuffer can also be used with the additional grinding attachment, which ensures quality final grinding and subsequent material filling into appropriate casings. The PSS Model SFV 705 Continuous Vacuum Stuffer comes standard equip with a vacuum system, which inhibits the possible creation of air bubbles in the final product.
RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the PSS Model SFV 705 Continuous Vacuum Stuffer and many others. Call or visit us today for more information!
Call, Email or Visit at:
951-734-8152
235 Benjamin Dr. Suite 102
Corona, CA 92879
All #304 Stainless Steel Construction
For meat with a temperature from +3 °C to +50 °C
Without mixing spiral
Multifunctionality
Ideal handling of raw material
Resistance
Unique design
Improved ergonomics
Shorter tube of worms and shorter worms
Front support of the worms (this increases the use time by 1.5 to 2 times)
Maximal adaptation to technology of sausage production
Very stable machine

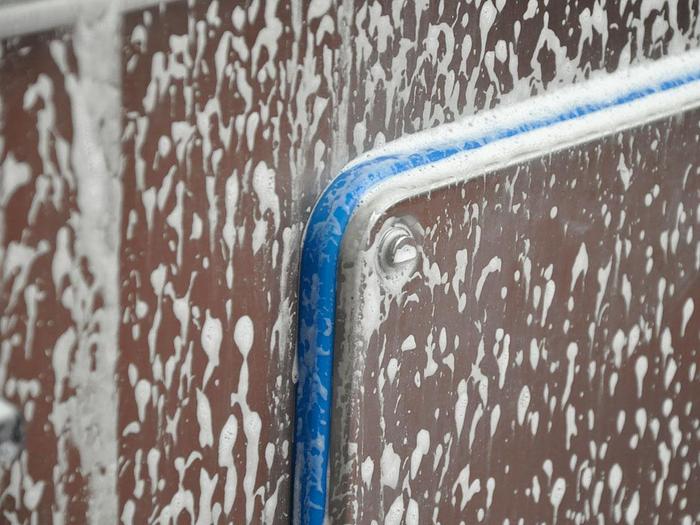

Easy cleaning of the underneath area is ensured by the solid base and height adjustable feet
Obtaining final product of excellent quality and ideal structure
Lifetime of the main drive with the possibility of operating 24 hours a day without interruption
Optional Features
Dosing device
Dosing Tube
Dispensing Head
Straight Tube or Knee

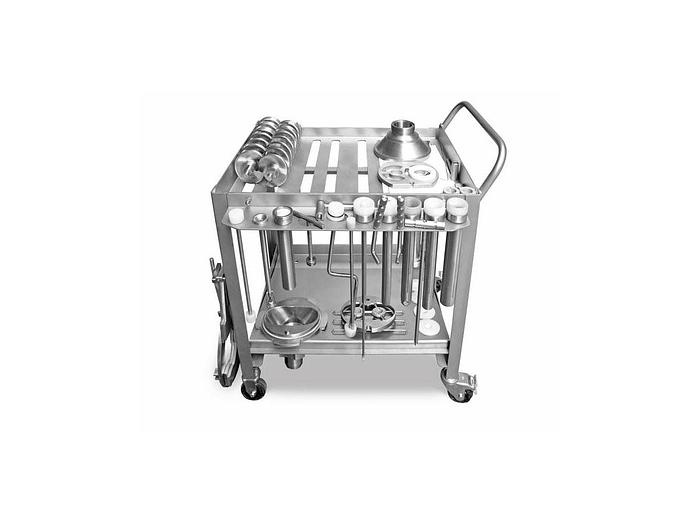

Trolley
Lifting Device
Forming Head
Specifications
| Condition | New |
| Dimensions (l x w x h) | 36.8" x 38.3" x 68.1" |
| Maximum working pressure | 23 bar |
| Output | 4,409 lbs. per hour (2,000 kg. per hour) |
| Deviation of final product weight | ± 1% |
| Hopper volume | 31.7 gallons (120 liters) |
| Input | 7.95 kw |
| Machine weight | 936 lbs. |
