Roser Model CBC1800 Pre-Breaker

Roser Model CBC1800 Pre-Breaker

Contact us for price

Location:Corona, CA

Description

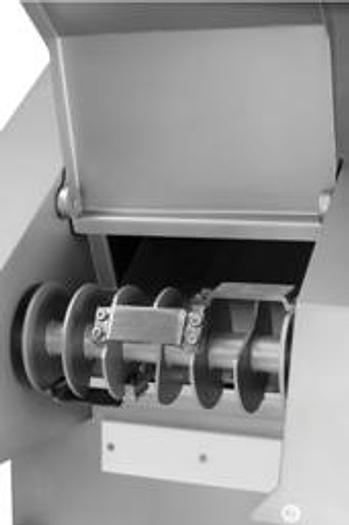

The Roser Model CBC1800 Pre-Breaker is designed to break up hard and frozen food blocks of meat and dairy products without destroying the texture of the product. Eliminating particles of inconsistent size as well as product emulsification. The Roser Model CBC1800 Pre-Breaker can process product of up to -4 Degrees Fahrenheit (8 degrees Fahrenheit recommended) saving the operator valuable time and energy. The blocks can be processed within quickly producing an extraordinary production output of up to 3968 pounds per hour. Maximum output of the Roser Model CBC1800 Pre-Breaker is ensured by the high cutting speed of the rotor type blade mechanism. The frozen blocks are drawn to the slow speed rotor blades with high torque cutting force. Frozen meat blocks are easy to load into the Roser Model CBC1800 Pre-Breakers cutting area, where they are transformed by sharp blades into slices. Or with cross blades into smaller cubed pieces. The Roser Model CBC1800 Pre-Breaker is simple and safe to operate. The Roser Model CBC1800 Pre-Breaker discharges product into 200L tote bins, various size tubs or onto a conveyor for continuous feeding to further processing. The robust and reliable quality build of the Roser Model CBC1800 Pre-Breaker means low maintenance and operating costs providing years of trouble-free operation. RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the Roser Model CBC1800 Pre-Breaker and many others. Call, E-mail or visit us today for more information! 235 Benjamin Dr. Suite 102 Corona, CA 92879 951-734-8152 info@ramaxwell.com All #304 Stainless Steel Construction The machine cuts the frozen blocks by means of a rotation blade roller with 4 blades shape “U”. Up to -20ºC blocks. The cut product is unloaded directly onto standard 200-litre trolleys. Simple lines and smooth surfaces to facilitate cleaning. Press-button controls with IP66 protection and operating voltage 24V Optional Features Automatic loading of the blocks by pneumatic loader or continuous (optional)

Specifications

ConditionNew

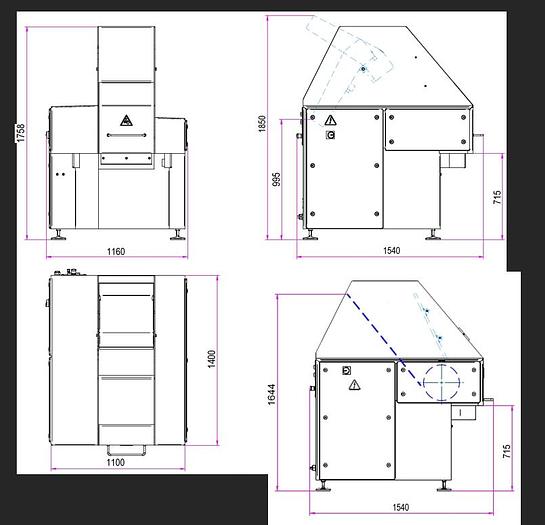

Machine dimensions (l" x w" x h")60.6" x 45.6" x 69.2"
Power supply400V – 50 Hz – 3Ph + GND (Ask for other voltages and frequencies)
Maximum block size (l" x w" x h")23.6" x 7.8" x 15.7"
Minimum recommended temperature-13º C
Minimum temperature of product-20º C
Total power7.5 kw
Voltage24 volt
Production output3968 Pounds Per Hour
Productionuntil 1.800kg/h.
Options of blocks loading- Automatic by means of pneumatic loader. - Continuous by means of conveyor (not included).
Maximum block size23.6" x 7.8" x 15.7"
