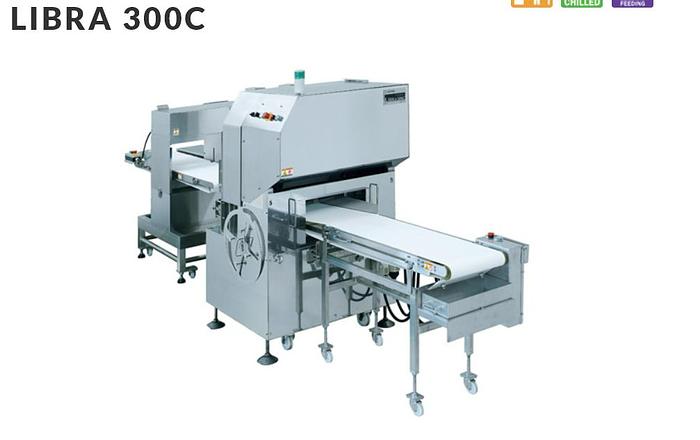

Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer

Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer

Contact us for price

Location:Corona, CA

Description

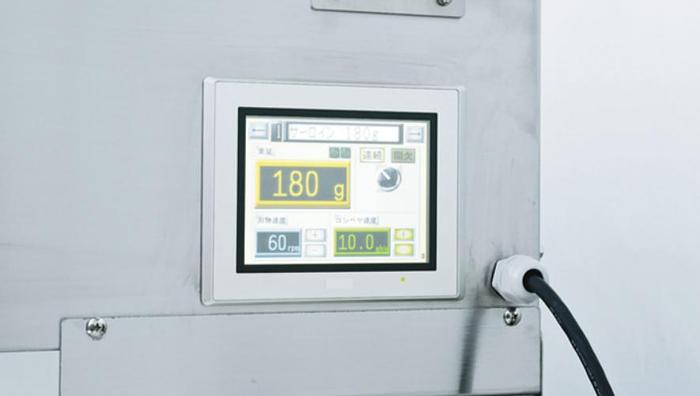

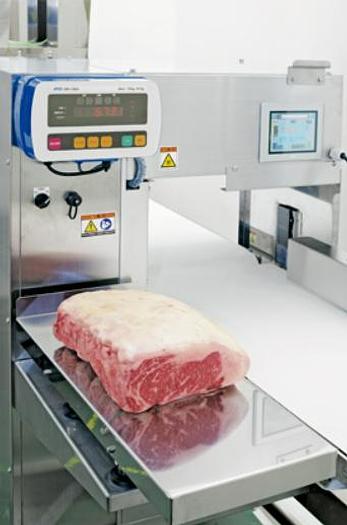

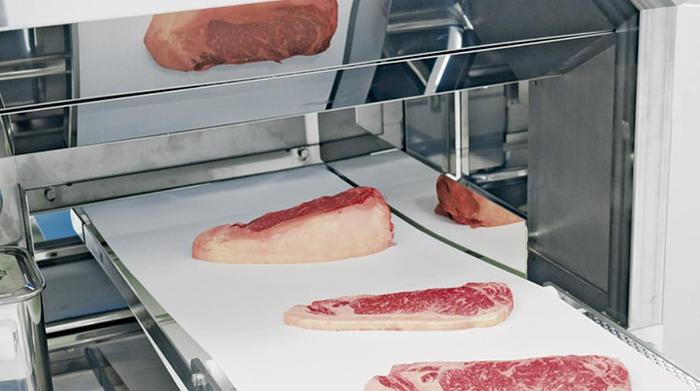

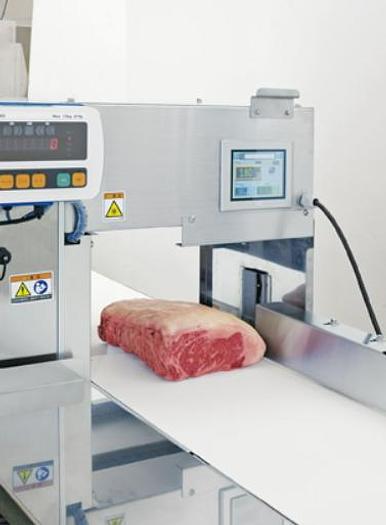

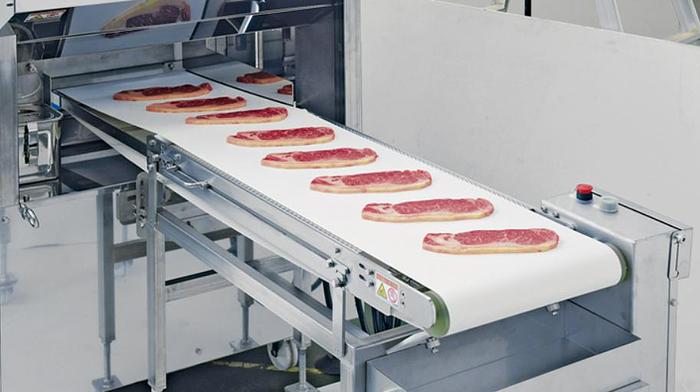

The Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer allows for large volume fixed weight slicing and large volume fixed thickness slicing of a wide range of meat products such as beef steak, belly and loin products. The operator of the Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer first places the product on a displacement sensor that, without contact reads the shape and weight of the product. After being weighed the product is simply placed on the meat feeding belt conveyor and the start switch is pressed and slicing commences automatically The shape of the meat product is read by the Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer's 3D measuring instrument before slicing, eliminating the need for weight feedback and enabling fast fixed weight processing. The number of consecutive slices, intermittent slices, and spacing of slices can be freely arranged on the conveyor. The Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer utilizes a color touch panel that is easy to view and operate. There are no difficult settings, and anyone can easily perform fixed weight slicing. The Nantsune company since 1925, together with food processing manufacturers in the food processing industry, has been consistently focusing on creating value for its customers. Nantsune manufactured and sold the world's first thinly sliced raw meat slicer. RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Nantsune Model NTD-300 Libra 300C Fixed Weight Meat Slicer and many others. Call or visit us today for more information! Call, Email or Visit at: 951-734-8152 235 Benjamin Dr. Suite 102 Corona, CA 92879 bob@ramaxwell.com Large volume fixed weight slicing of wide ingredients such as beef steak Large volume fixed thickness slicing of thin slices such as belly and loin products Shape is read by the displacement sensor without contact High speed fixed weight slicing LCD touch panel for easy operation Improved performance and sanitation Four-part top presser to hold large meat rod firmly

Specifications

ConditionNew
Dimensions (l x w x h)58.5" x 42.2" x 70.3"
Machine weight1322.77 lbs.
Motor capacityFor round blade: 1.5kW,For revolution: 0.75kW,For feeder: 0.75kW (AC servo)
Power consumption0.082kW (50Hz/60Hz no load)
Sliceable dimensions (l" x w" x h")23.62" x 11.81" x 7.08"
Slicing performanceFixed weight slice: Maximum 5000 pieces/hr *Assuming the meat rod is 500mm long and 12mm thick Regular slice: Maximum 150 pieces/min * Cannot perform meat shaving
Slice thickness(0)~50mm
Slice applicable temperature28.4 - 34.7 degrees Fahrenheit (-2℃~+3℃)
Air supply0.5MPa 42L/min tube outer diameter 8mm
Conveyor dimensions (l" x w" x h")67" x 24.2" (belt: 13.7") x 35.8"
