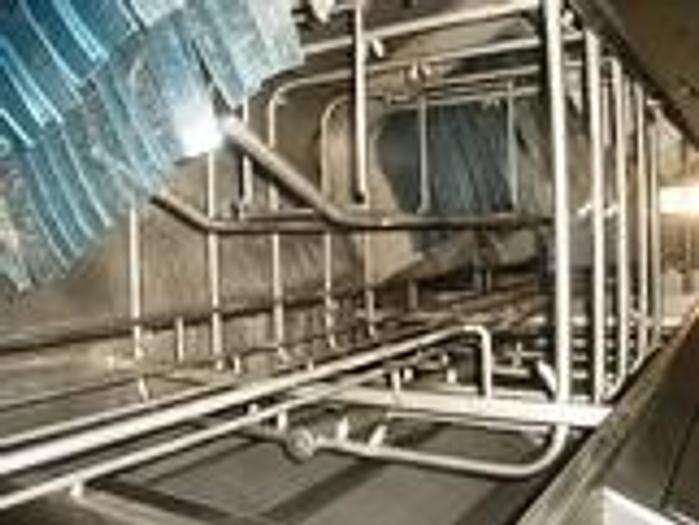

Xuclá Model M32Z Tote and Bin Tunnel Washer

Xuclá Model M32Z Tote and Bin Tunnel Washer

Contact us for price

Location:Corona, CA

Description

The washing tunnels series has the possibility to adjust the functionality to the the needs and requirements of the customer. The tunnel washer optimizes the complete use of the pressure flow of the water and the rounded forms makes the water slide down the sides, improving the performance and the sanitation of the process. The evolution and engineering of our tunnel washers makes the equipment very efficient with the environment and allows for energy saving. The model M32Z Tunnel washing machine is ideal for sanitation of small and medium size productions. the design of the tunnel washer permits the access to every part of the machine to make it easy to maintain and achieve the complete washing process. The washing tunnel series is set up with auto return tunnel and is capable of washing up to 300 units per hour. To maintain the high temperature of the tunnel washer, we offer three heating elements of 6,000 watts each.

Specifications

ConditionNew
Production300 units per hour depending on their size and dirtiness
Washing tank80 Gallons
Rinsing water (gallons)2 to 2.5
Electrical heating elements3 at 6,000 Watts (18,000 total)
Pump motor - standard7HP
Voltage230 V / 60 Hz / 3 Ph
Machine dimensions l x w x h138" x 56" x 61"
Loading area21.25" x 16.14"
Maximum tote l x w x h23.62" x 15.75" x 11.81"
Loading height from the floor39.37"
Moeller electrical partsmotor-protections, contactors, terminals and swithces
