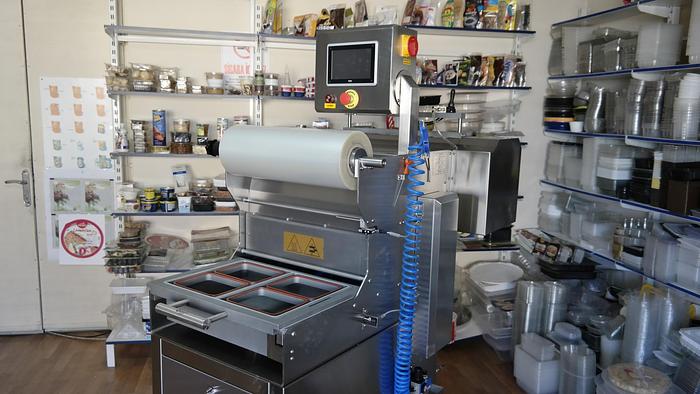

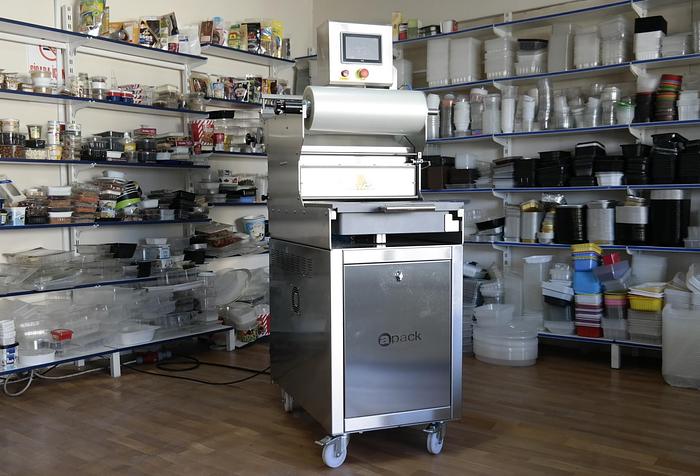

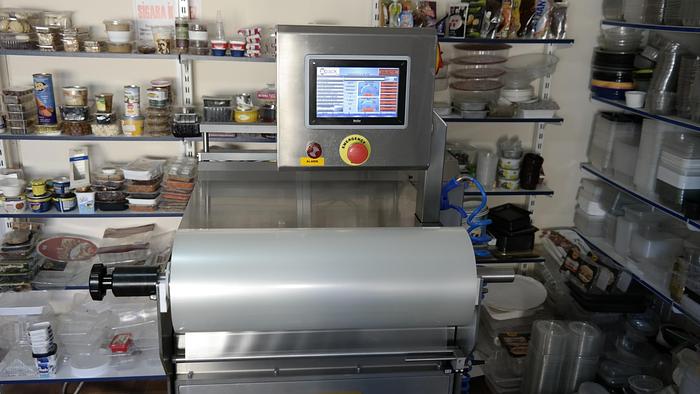

Apack Model MAP 25 Tray Sealing and MAP Packaging Machine

Apack Model MAP 25 Tray Sealing and MAP Packaging Machine
Contact us for price
Location:Corona, CA
or
Call 951-734-8152
Description

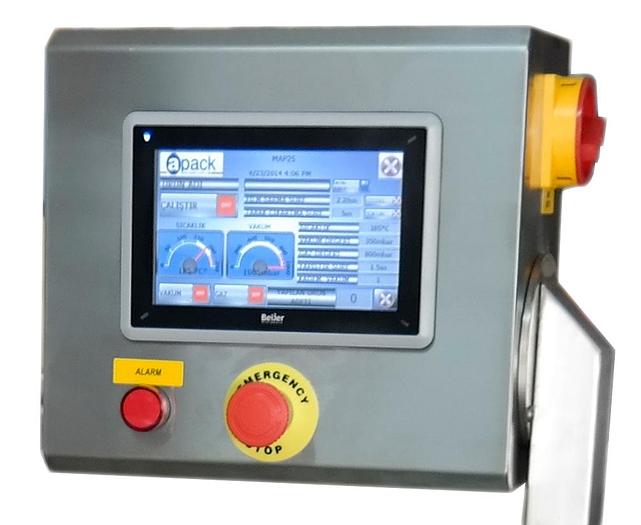

MAP25 series is a product designed and developed in accordance with the wishes of the manufacturer. Available in enlarged (Extended), Double Station (Double Station) and Skin Packaging versions. MAP25 is designed for the working conditions in our country and is manufactured by APACK up to the smallest screw. Its stainless-steel body is extremely robust, and the settings of the machine do not deteriorate in displacements. As the welding pool is cast, it is exceptionally durable and long-lasting. It is extremely easy to maintain and clean. It fits easily in any production environment. Thanks to its touch screen, every step of the packaging process can be controlled easily. With 24 PLC control circuits, all stages of production and possible error messages are displayed on the screen. The MAP25 electrical system provides trouble-free service as it is protected against water, moisture, and external influences. Its operations can be adjusted in accordance with all kinds of plates and films.
Specifications
| Condition | New |
| Voltage | 230/460 |
| Power | Max. 6kW |
| Vacuum pump | 60m³ / h |
| Compressed air | 7 NL per product, 30 NL / min, 6 bars |
| Gas power | 2‐6 bar |
| Dimensions (wxdxh) in mm | 650 x 1090 x 1720 mm. or 26" x 43" x 68" inches |
| Weight | 220 KG or 485LBS |
| Film width | 18 1/2" |
| Film coil diameter | 3" |
