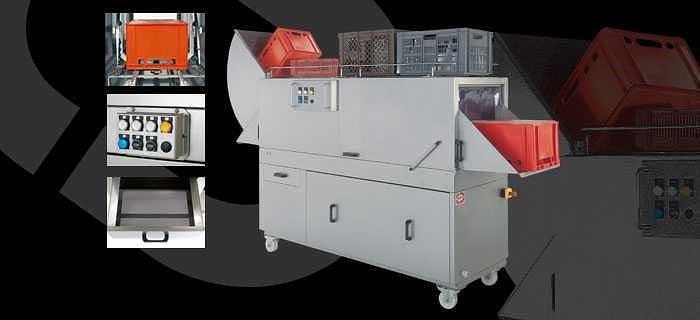

Jeros Model 200 Tunnel Washer

Jeros Model 200 Tunnel Washer

Contact us for price

Location:Corona, CA

Description

These JEROS Crate & Pan Washer Models are specially developed and designed for small and medium sized companies and are specifically suitable for all plastic crates, totes, baking pans and other comparable products. It is manufactured throughout in stainless steel. The pump and heating elements are protected against drying out by means of a low water level security system. These machines have a Main Wash section and a separate Rinse Section. In the main wash section items are washed with recycled water. Recycled water is filtered by an easily removable filter system. Wash water is electrically heated and pumped by a stainless steel circulation pump to the jet spray nozzles. In the rinse section items are rinsed with fresh water. Rinse water replaces water in main wash tank. Surplus water and surface pollution are drained by an overflow. RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Jeros Model 200 Tunnel Washer and many others. Call or visit us today for more information! Call, Email or Visit at: 951-734-8152 235 Benjamin Dr. Suite 102 Corona, CA 92879 bob@ramaxwell.com Conveyor system in stainless steel A great wash result with a new and unique wash system No down holder necessary Long neutral zone guarantees optimal rinse result Optional Features One man operation with return hood system (Optional on the Model 200 and 200XL) Soap Dosage Rinse Dosage After rinse heater Adjustable conveyer speed Conveyor/lattice-belt Blowing Unit JEROS 200TD Call your sales person for optional price and custom built machines

Specifications

ConditionNew
Washing tank capacity45 Gallons
Rinsing water temperature185 °F
Rinsing systemFrame Nozzles
Overall dimensions h x w x d (closed)65" x 35" x 120"
Overall dimensions h x w x d (open)90" x 35" x 120"
Washing area h x w19” x 18.5”
Water consumption per washDepends on wash load
Plastic crates (variable) hxw18" x 18"
Crates per hour150-250
Output motor 480v/ 60hz/ 3ph28HP
Number of heating elements4
Fuse amps32
Motor protecting switchYes
Number of filters1
Water connection temperature120°F
Drain dimension2"
Production materialStainless Steel
Locking caster wheelsYes
