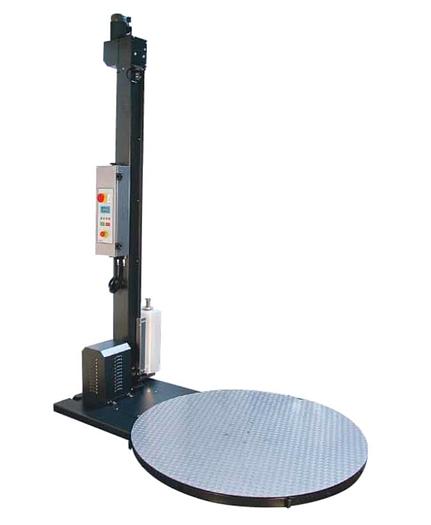

RAM Model 981LC Pallet Wrapper with Ramp

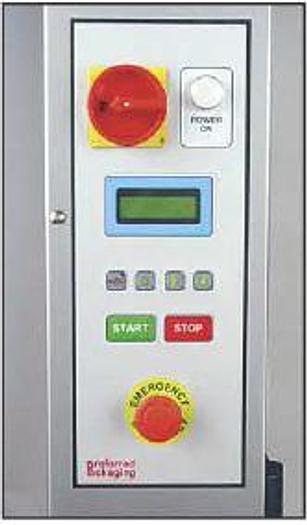

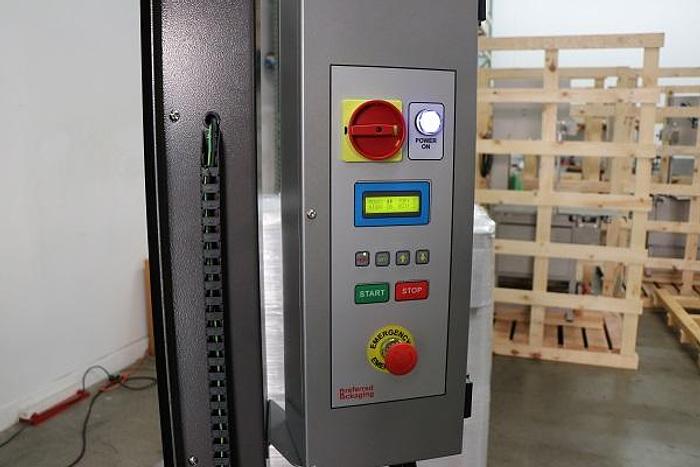

The RAM Model 981LC Pallet Wrapper with Ramp is a highly efficient and affordable machine. its purpose is to reduce labor time, increase production and take the strain off your workers when applying stretch film onto pallets. These Pallet Wrappers are ideal for medium size processors who are looking to increase productivity while reducing labor costs. The RAM Model 981LC has a 3,000 Pound Load Capacity up to 85" in height. It can wrap 20 to 25 pallet Loads per Hour. It has an easy to use and understand front digital control panel with top and bottom wrap counters. The RAM Model 981LC can be used in manual or an automatic mode which use's a "photo eye" to detect the height of the pallet. The turntable is driven by a chain drive and supported by a heavy duty Delrin double ring roller assembly. The RAM Model 981LC comes standard with a low profile ramp. RAM Manufacturing Equipment located in Corona, California, offers training, installation, service and parts for all the machines we sell. Including the Excel Packaging Model 981 Pallet Wrapper and many others. Call or visit us today for more information! Call, Email or Visit at: 951-734-8152 235 Benjamin Dr. Suite 102 Corona, CA 92879 bob@ramaxwell.com 10 Programable memory Variable wrap count Semi automatic 59" heavy duty turntable with diamond plate non-slip surface. Loading ramp can be attached from 3 sides Mechanical Break Stretch @ 100% 3,000 lb. Load Capacity Soft Start, Fixed Speed Turntable 10RPM Can accommodate pallet loads up to 85” high Photo Eye seeks pallet load height 12 ft power cord Production rate of 20 to 25 loads per hour Large 59” diameter turntable base Diamond plate design prevents shifting when turning 14 sets of Delrin rollers disperse load weight evenly for quiet operation Max load size 48” x 48” x 85” high LED screen allows up to 10 program memory Independent top and bottom wrap counters Fixed film carriage speed control Emergency safety stop switch Simple electrical control panel- easy to repair and trouble shoot Fuse protected Forklift portable, easy to move around Belt drive for film carriage – No messy chains to lubricate Uses standard 20” machine stretch film Film core holder features tapered base allowing customer to use different core size rolls if needed Heavy duty #50 chain drive for turntable Heavy duty 3/4 hp turntable drive motor with soft start motors. 110 volt power-Plugs into regular wall outlet Optional Features 5,000 Built in weigh scale 72" Diameter turntable Base extensions Variable speed turntable 105" tall mast
