Thompson Machinery Model MPM 500 Meat Portioning Machine

Thompson Machinery Model MPM 500 Meat Portioning Machine
Contact us for price
Location:Corona, CA
or
Call 951-734-8152
Description

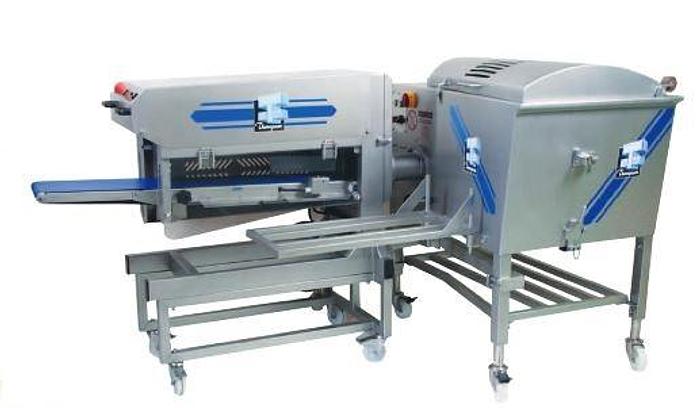

The Thompson Machinery Model MPM 500 Meat Portioning Machine is designed to be integrated into the Thompson Mixer Mincer. This high speed Thompson Machinery Model MPM 500 Meat Portioning Machine quickly turns out mince meat portions ready for tray packing and retail display. It can be set to operate in the "free flow" and "patty" modes. The Thompson Machinery Model MPM 500 Meat Portioning Machine is ideal for meat packaging plant, high quality processing plants, supermarkets and butcher shops.
RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all of our inventory. Including the Thompson Machinery Model MPM 500 Meat Portioning Machine and many others. Call, E-mail or visit us today for more information!
235 Benjamin Dr. Suite 102
Corona, CA 92879
951-734-8152
info@ramaxwell.com
High quality 304 Stainless Steel cabinet and enclosure
Certified food safe material used for all parts in contact with food product
Constructed in accordance with HACCP for maximum hygiene
High production output rate of up to 50 portions / m
Adjustable belt speed control for maximum throughput
Adjustable outlet belt height for easy connection to downstream packaging system
Custom connecting kit built to specifications for quick and easy connection to various Thompson Mixer Mincer cutting systems
Portioning area fitted with AISI 304 Stainless Steel cutting blade and paper roll. Photocell adjustable length allows high accuracy and consistency weight and shape putting
IP 56 Electrical enclosure to ensure parts are sealed in water proof cabinet
Low voltage (24V) controls
Heavy Duty Stainless Steel Castors (2 lockable) for mobility
Specifications
| Condition | New |
| Head centre height | 550 mm |
| Portion outlet height | 400 mm |
| Portions per minute | Max 50 |
| Portion width | Max 130 mm |
| Portion length | 50-250 mm |
| Portion height | Max 70 mm |
| Portion weight | 0.1-1 kg |
| Tolerance | +/- 25 g |
